Base class for components providing meta data More...

#include <MetaComponentBase.hpp>

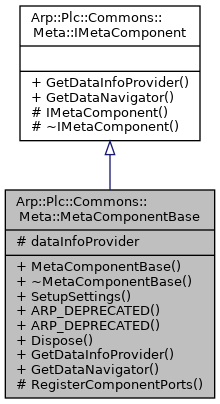

Inheritance diagram for Arp::Plc::Commons::Meta::MetaComponentBase:

Public Member Functions
	MetaComponentBase (const char *libraryNamespace)
	Constructs an MetaComponentBase instance More...

	~MetaComponentBase () override=default
	Destructs this object More...

void	SetupSettings (void)
	Sets up the internal DataInfoProvider to enable providing meta data More...

	ARP_DEPRECATED ("Call MetaComponentBase::SetupSettings() in the component's SetupSettings() method instead.") void SetupConfig(void)
	SetupConfig More...

	ARP_DEPRECATED ("Call MetaComponentBase::Dispose() in the component's Dispose() method instead.") void ResetConfig(void)
	ResetConfig More...

void	Dispose (void)
	Resets the internal DataInfoProvider More...

IDataInfoProvider &	GetDataInfoProvider (bool useBackgroundDomain) override
	Gets the IDataInfoProvider of this component. More...

IDataNavigator *	GetDataNavigator (void) override
	Gets the specialized IDataNavigator of this component. More...

Protected Member Functions
virtual void	RegisterComponentPorts (void)=0
	Registers the ports of this component with its DataInfoProvider More...

Protected Member Functions inherited from Arp::Plc::Commons::Meta::IMetaComponent
	IMetaComponent (void)=default
	Constructs an IMetaComponent instance. More...

virtual	~IMetaComponent (void)=default
	Destructs this instance and frees all resources. More...

Protected Attributes
DataInfoProvider	dataInfoProvider

Additional Inherited Members
Public Types inherited from Arp::Plc::Commons::Meta::IMetaComponent
using	Ptr = std::shared_ptr< IMetaComponent >
	std::shared_ptr to IMetaComponent More...

Detailed Description

Base class for components providing meta data

Derive from this class as well as from ComponentBase. Call SetupSettings in ComponentBase::SetupSettings() and call Dispose in ComponentBase::Dispose(). These calls are neccessary to setup and dispose the included DataInfoProvider

Constructor & Destructor Documentation

◆ MetaComponentBase()

Arp::Plc::Commons::Meta::MetaComponentBase::MetaComponentBase ( const char * libraryNamespace )

Constructs an MetaComponentBase instance

Parameters

libraryNamespace Namensraum der Bibliothek

◆ ~MetaComponentBase()

Arp::Plc::Commons::Meta::MetaComponentBase::~MetaComponentBase ( )

overridedefault

Destructs this object

Member Function Documentation

◆ ARP_DEPRECATED() [1/2]

Arp::Plc::Commons::Meta::MetaComponentBase::ARP_DEPRECATED ( "Call MetaComponentBase::Dispose() in the component's Dispose() method instead." )

ResetConfig

Deprecated! Use Dispose.

◆ ARP_DEPRECATED() [2/2]

Arp::Plc::Commons::Meta::MetaComponentBase::ARP_DEPRECATED ( "Call MetaComponentBase::SetupSettings() in the component's SetupSettings() method instead." )

SetupConfig

Deprecated! Use SetupSettings.

◆ Dispose()

void Arp::Plc::Commons::Meta::MetaComponentBase::Dispose ( void )

Resets the internal DataInfoProvider

◆ GetDataInfoProvider()

IDataInfoProvider& Arp::Plc::Commons::Meta::MetaComponentBase::GetDataInfoProvider ( bool useBackgroundDomain )

overridevirtual

Gets the IDataInfoProvider of this component.

Parameters

useBackgroundDomain true if the provider of the background domain should be returned, otherwise false.

Returns: IDataInfoProvider of this component

Implements Arp::Plc::Commons::Meta::IMetaComponent.

◆ GetDataNavigator()

IDataNavigator* Arp::Plc::Commons::Meta::MetaComponentBase::GetDataNavigator ( void )

overridevirtual

Gets the specialized IDataNavigator of this component.

Returns: The data navigator of this component or nullptr if it's not provided.

This function is obsolete

Implements Arp::Plc::Commons::Meta::IMetaComponent.

◆ RegisterComponentPorts()

virtual void Arp::Plc::Commons::Meta::MetaComponentBase::RegisterComponentPorts ( void )

protectedpure virtual

Registers the ports of this component with its DataInfoProvider

Implement this method to make the ports of this component available as variables using DataInfoProvider::AddRoot().

◆ SetupSettings()

void Arp::Plc::Commons::Meta::MetaComponentBase::SetupSettings ( void )

Sets up the internal DataInfoProvider to enable providing meta data

The documentation for this class was generated from the following file:

Arp/Plc/Commons/Meta/MetaComponentBase.hpp
