Arp::Plc::Commons::Meta::CustomAttribute Class Reference

Container for individual attributes within the interface DataBrowser More...

#include <CustomAttribute.hpp>

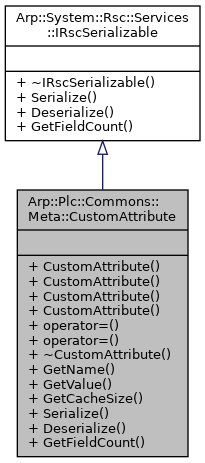

Inheritance diagram for Arp::Plc::Commons::Meta::CustomAttribute:

Public Member Functions
	CustomAttribute (void)=default
	Constructs an CustomAttribute instance. More...
	CustomAttribute (const String &name, RscVariant< 256 > value)
	Constructs an CustomAttribute instance. More...
	CustomAttribute (const CustomAttribute &arg)=default
	Copy constructor. More...
	CustomAttribute (CustomAttribute &&arg)=default
	Move constructor. More...
CustomAttribute &	operator= (const CustomAttribute &arg)=default
	Copy assignment operator. More...
CustomAttribute &	operator= (CustomAttribute &&arg)=default
	Move assignment operator More...
	~CustomAttribute (void) override=default
	Destructs this instance and frees all resources. More...
const String &	GetName () const
	Name of the respective attribute this instance object include. More...
const RscVariant< 256 > &	GetValue () const
	Attribute value. More...
size_t	GetCacheSize (void) const
	Get the cache size More...
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...
void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...
Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor More...

Static Public Member Functions
static size_t	GetFieldCount (void)
Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Detailed Description

Container for individual attributes within the interface DataBrowser

Constructor & Destructor Documentation

CustomAttribute() [1/4]

Arp::Plc::Commons::Meta::CustomAttribute::CustomAttribute ( void  )

default

Constructs an CustomAttribute instance.

CustomAttribute() [2/4]

Arp::Plc::Commons::Meta::CustomAttribute::CustomAttribute	(	const String &	name,
		RscVariant< 256 >	value
	)

Constructs an CustomAttribute instance.

CustomAttribute() [3/4]

Arp::Plc::Commons::Meta::CustomAttribute::CustomAttribute ( const CustomAttribute &  arg )

default

Copy constructor.

CustomAttribute() [4/4]

Arp::Plc::Commons::Meta::CustomAttribute::CustomAttribute ( CustomAttribute &&  arg )

default

Move constructor.

~CustomAttribute()

Arp::Plc::Commons::Meta::CustomAttribute::~CustomAttribute ( void  )

overridedefault

Destructs this instance and frees all resources.

Member Function Documentation

Deserialize()

void Arp::Plc::Commons::Meta::CustomAttribute::Deserialize ( RscReader &  reader )

overridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader

Reference to RscReader.

Implements Arp::System::Rsc::Services::IRscSerializable.

GetCacheSize()

size_t Arp::Plc::Commons::Meta::CustomAttribute::GetCacheSize ( void  ) const

inline

Get the cache size

Returns

Number of using cache size

GetName()

const String & Arp::Plc::Commons::Meta::CustomAttribute::GetName ( void  ) const

inline

Name of the respective attribute this instance object include.

Returns

Attribute Name.

GetValue()

const RscVariant< 256 > & Arp::Plc::Commons::Meta::CustomAttribute::GetValue ( void  ) const

inline

Attribute value.

The value type is RscVariant.

Returns

RscVariant object.

operator=() [1/2]

CustomAttribute& Arp::Plc::Commons::Meta::CustomAttribute::operator= ( const CustomAttribute &  arg )

default

Copy assignment operator.

operator=() [2/2]

CustomAttribute& Arp::Plc::Commons::Meta::CustomAttribute::operator= ( CustomAttribute &&  arg )

default

Move assignment operator

Serialize()

void Arp::Plc::Commons::Meta::CustomAttribute::Serialize ( RscWriter &  writer ) const

overridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer

Reference to RscWriter

Implements Arp::System::Rsc::Services::IRscSerializable.

---

The documentation for this class was generated from the following file:

• Arp/Plc/Commons/Meta/CustomAttribute.hpp
