Arp::Plc::Commons::Esm::IProgram Class Reference

Interface to implement PLC program to be executed in realtime context. More...

#include <IProgram.hpp>

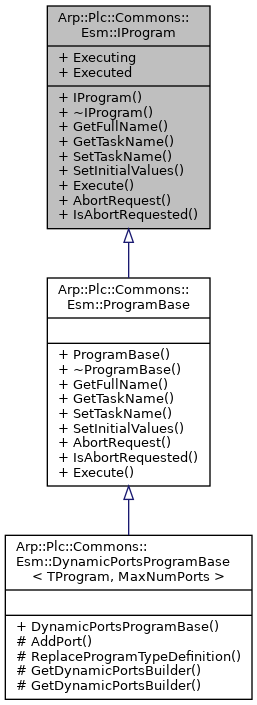

Inheritance diagram for Arp::Plc::Commons::Esm::IProgram:

Public Types
using	Ptr = std::shared_ptr< IProgram >
	Shared pointer type of IProgram. More...
using	EventHandler = delegate< void(void)>
	The Event handler type is executed by the events Executing and Executed. More...

Public Member Functions
	IProgram (void)=default
	Constructs an IProgram instance. More...
virtual	~IProgram (void)=default
	Destructs this instance and frees all resouces. More...
virtual const String &	GetFullName (void) const =0
	Returns the program name with full namespace. More...
virtual const String &	GetTaskName () const =0
	Returns the task name in which is this program will be executed. More...
virtual void	SetTaskName (const String &value)=0
	Set the task name in which is this program will be executed. More...
virtual void	SetInitialValues (void)=0
	Sets all variables of this program to its initial values. More...
virtual void	Execute (void)=0
	Executes this program. More...
virtual void	AbortRequest (void)=0
	Requests an abort of program execution. More...
virtual bool	IsAbortRequested (void) const =0
	Determines if this program is requested to abort. More...

Public Attributes
event< void >	Executing
	The Executing event is invoked before this program is executed by the Execute operation. More...
event< void >	Executed
	The Executed event is executed after this program is executed by the Execute operation. More...

Detailed Description

Interface to implement PLC program to be executed in realtime context.

Programs implementing this interface might be scheduled and executed by the Esm. Use ProgramBase as base class to implement your own programs.

Member Typedef Documentation

EventHandler

using Arp::Plc::Commons::Esm::IProgram::EventHandler = delegate<void(void)>

The Event handler type is executed by the events Executing and Executed.

Ptr

using Arp::Plc::Commons::Esm::IProgram::Ptr = std::shared_ptr<IProgram>

Shared pointer type of IProgram.

Constructor & Destructor Documentation

IProgram()

Arp::Plc::Commons::Esm::IProgram::IProgram ( void  )

default

Constructs an IProgram instance.

~IProgram()

virtual Arp::Plc::Commons::Esm::IProgram::~IProgram ( void  )

virtualdefault

Destructs this instance and frees all resouces.

Member Function Documentation

AbortRequest()

virtual void Arp::Plc::Commons::Esm::IProgram::AbortRequest ( void  )

pure virtual

Requests an abort of program execution.

Implemented in Arp::Plc::Commons::Esm::ProgramBase.

Execute()

virtual void Arp::Plc::Commons::Esm::IProgram::Execute ( void  )

pure virtual

Executes this program.

This operation should be overridden in any derived implementation.

Implemented in Arp::Plc::Commons::Esm::ProgramBase.

GetFullName()

virtual const String& Arp::Plc::Commons::Esm::IProgram::GetFullName ( void  ) const

pure virtual

Returns the program name with full namespace.

Returns

The program name with full namespace.

Implemented in Arp::Plc::Commons::Esm::ProgramBase.

GetTaskName()

virtual const String& Arp::Plc::Commons::Esm::IProgram::GetTaskName ( ) const

pure virtual

Returns the task name in which is this program will be executed.

Returns

The task name in which is this program will be executed.

Implemented in Arp::Plc::Commons::Esm::ProgramBase.

IsAbortRequested()

virtual bool Arp::Plc::Commons::Esm::IProgram::IsAbortRequested ( void  ) const

pure virtual

Determines if this program is requested to abort.

Implemented in Arp::Plc::Commons::Esm::ProgramBase.

SetInitialValues()

virtual void Arp::Plc::Commons::Esm::IProgram::SetInitialValues ( void  )

pure virtual

Sets all variables of this program to its initial values.

Implemented in Arp::Plc::Commons::Esm::ProgramBase.

SetTaskName()

virtual void Arp::Plc::Commons::Esm::IProgram::SetTaskName ( const String &  value )

pure virtual

Set the task name in which is this program will be executed.

Parameters

value

The task name in which is this program will be executed.

Implemented in Arp::Plc::Commons::Esm::ProgramBase.

Member Data Documentation

Executed

event<void> Arp::Plc::Commons::Esm::IProgram::Executed

The Executed event is executed after this program is executed by the Execute operation.

Executing

event<void> Arp::Plc::Commons::Esm::IProgram::Executing

The Executing event is invoked before this program is executed by the Execute operation.

---

The documentation for this class was generated from the following file:

• Arp/Plc/Commons/Esm/IProgram.hpp
