Arp::Io::ProfinetStack::System::Services::IConfigurationService Class Reference

This service read and writes different configuration options to the profinet system. More...

#include <IConfigurationService.hpp>

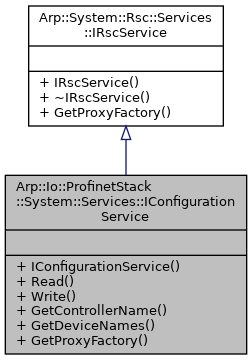

Inheritance diagram for Arp::Io::ProfinetStack::System::Services::IConfigurationService:

Public Types
using	Ptr = std::shared_ptr< IConfigurationService >
Public Types inherited from Arp::System::Rsc::Services::IRscService
typedef std::shared_ptr< IRscService >	Ptr

Public Member Functions
	IConfigurationService (void)=default
	Constructs an IConfigurationService instance. More...
virtual ConfigurationErrorCode	Read (const RscString< 512 > &name, RscVariant< 512 > &value)=0
	Reads one configuration from the profinet system. More...
virtual ConfigurationErrorCode	Write (const RscString< 512 > &name, RscVariant< 512 > value)=0
	Writes one configuration to the profinet system. More...
virtual RscString< 512 >	GetControllerName ()=0
	Gets the instance name of the profinet controller. If no controller is registered returns an empty string. More...
virtual std::vector< RscString< 512 > >	GetDeviceNames ()=0
	Gets the instance names of all registered profinet devices. More...
Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
	IRscService (void)=default
	Constructs an IRscService instance. More...
virtual	~IRscService (void)=default
	Destructs this instance and frees all resouces. More...

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)
Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of the service More...

Detailed Description

This service read and writes different configuration options to the profinet system.

The following configuration options are available:

Option	Value	Description
ComponentName/StationName	String	Reads or writes the station name of the profinet instance defined by ComponentName
uint16 (MRPMode)	0 - off; 1 - client	Reads or sets the MRP mode

ComponentName has to be replaced by the name of profinet instance (Arp.Io.PnC or Arp.Io.PnD) e.g. Arp.Io.PnD/StationName.

This service is defined in library Arp.Io.ProfinetStack.

Constructor & Destructor Documentation

IConfigurationService()

Arp::Io::ProfinetStack::System::Services::IConfigurationService::IConfigurationService ( void  )

default

Constructs an IConfigurationService instance.

Member Function Documentation

GetControllerName()

virtual RscString<512> Arp::Io::ProfinetStack::System::Services::IConfigurationService::GetControllerName ( )

pure virtual

Gets the instance name of the profinet controller. If no controller is registered returns an empty string.

Returns

Instance name of the controller

GetDeviceNames()

virtual std::vector<RscString<512> > Arp::Io::ProfinetStack::System::Services::IConfigurationService::GetDeviceNames ( )

pure virtual

Gets the instance names of all registered profinet devices.

Returns

Names of all registered profinet devices

Read()

virtual ConfigurationErrorCode Arp::Io::ProfinetStack::System::Services::IConfigurationService::Read ( const RscString< 512 > &  name, RscVariant< 512 > &  value  )

pure virtual

Reads one configuration from the profinet system.

Parameters

name	Name of the configuration option
value	Contains the read value

Returns

If operation was successfull and result contains valid value returns None, else returns specific error code.

Write()

virtual ConfigurationErrorCode Arp::Io::ProfinetStack::System::Services::IConfigurationService::Write ( const RscString< 512 > &  name, RscVariant< 512 >  value  )

pure virtual

Writes one configuration to the profinet system.

Parameters

name	Name of the configuration option
value	Contains the value of the configuration option to write

Returns

If operation was successfull and value has been written returns None, else returns specific error code.

---

The documentation for this class was generated from the following file:

• Arp/Io/ProfinetStack/System/Services/IConfigurationService.hpp
