This structure contains all parameters of a PROFINET address More...

#include <ProfinetAddress.hpp>

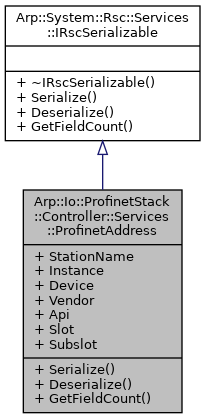

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::ProfinetAddress:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
RscString< 512 >	StationName
	Station name of the device More...

uint16	Instance = 0
	Instance ID More...

uint16	Device = 0
	Device ID More...

uint16	Vendor = 0
	Vendor ID More...

uint32	Api = 0
	Application Process Identifier More...

uint16	Slot = 0
	Slot number More...

uint16	Subslot = 0
	Subslot number More...

Detailed Description

This structure contains all parameters of a PROFINET address

Member Function Documentation

◆ Deserialize()

void Arp::Io::ProfinetStack::Controller::Services::ProfinetAddress::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

Implements Arp::System::Rsc::Services::IRscSerializable.

◆ Serialize()

void Arp::Io::ProfinetStack::Controller::Services::ProfinetAddress::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

Implements Arp::System::Rsc::Services::IRscSerializable.

Member Data Documentation

◆ Api

uint32 Arp::Io::ProfinetStack::Controller::Services::ProfinetAddress::Api = 0

Application Process Identifier

◆ Device

uint16 Arp::Io::ProfinetStack::Controller::Services::ProfinetAddress::Device = 0

Device ID

◆ Instance

uint16 Arp::Io::ProfinetStack::Controller::Services::ProfinetAddress::Instance = 0

Instance ID

◆ Slot

uint16 Arp::Io::ProfinetStack::Controller::Services::ProfinetAddress::Slot = 0

Slot number

◆ StationName

RscString<512> Arp::Io::ProfinetStack::Controller::Services::ProfinetAddress::StationName

Station name of the device

◆ Subslot

uint16 Arp::Io::ProfinetStack::Controller::Services::ProfinetAddress::Subslot = 0

Subslot number

◆ Vendor

uint16 Arp::Io::ProfinetStack::Controller::Services::ProfinetAddress::Vendor = 0

Vendor ID

The documentation for this class was generated from the following file:

Arp/Io/ProfinetStack/Controller/Services/ProfinetAddress.hpp
