Container for a combination of an error code and a value which is a result for a read operation to a single setting. More...
#include <DiagnosticInfo.hpp>
Public Member Functions | |
| void | Serialize (RscWriter &writer) const override |
| Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More... | |
| void | Deserialize (RscReader &reader) override |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More... | |

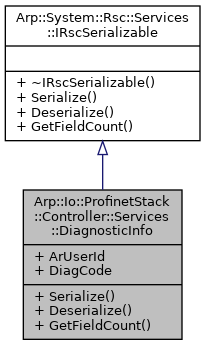

 Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable | |
| virtual | ~IRscSerializable ()=default |
| default destructor More... | |
Static Public Member Functions | |
| static constexpr size_t | GetFieldCount (void) |
| Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable | |
| static size_t | GetFieldCount (void) |
| Returns the count of fields of the struct type More... | |
Public Attributes | |
| uint16 | ArUserId = 0 |
| User specific identifier of this AR More... | |
| uint16 | DiagCode = 0 |
| Special status of this AR, bitwise coded. More... | |
Detailed Description
Container for a combination of an error code and a value which is a result for a read operation to a single setting.
A sequence of instances of this structure is used as result by Arp.Io.ProfinetStack.Controller.Services.IArDataService.GetArDiagnosis.
Member Function Documentation
◆ Deserialize()
|
inlineoverridevirtual |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.
- Parameters
-
reader Reference to RscReader.
Implements Arp::System::Rsc::Services::IRscSerializable.
◆ Serialize()
|
inlineoverridevirtual |
Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.
- Parameters
-
writer Reference to RscWriter
Implements Arp::System::Rsc::Services::IRscSerializable.
Member Data Documentation
◆ ArUserId
| uint16 Arp::Io::ProfinetStack::Controller::Services::DiagnosticInfo::ArUserId = 0 |
User specific identifier of this AR
◆ DiagCode
| uint16 Arp::Io::ProfinetStack::Controller::Services::DiagnosticInfo::DiagCode = 0 |
Special status of this AR, bitwise coded.
- Bit 0: set if not connected
- Bit 1: set if data invalid
- Bit 2: set if diagnosis is available
- Bit 3: set if module difference is available in case of configuration difference
- Bit 4: set if AR is deactivated
- Bit 5: set if neighborhood information is not available
- Bit 6: neighborhood information not unique
- Bit 7 - Identify.cnf on alias received, but name of the device is already configured in another AR
- Bit 8: Maintenance Required Information is available
- Bit 9: Maintenance Demanded Information is available
- Bit 10: Channel or Manufacturer Specific Diagnosis Information are available
- Bit 11..15: reserved (shall be 0)
The documentation for this class was generated from the following file:
- Arp/Io/ProfinetStack/Controller/Services/DiagnosticInfo.hpp
