This struct contains the vendor name and the device name of one device More...

#include <DeviceIdentityInfo.hpp>

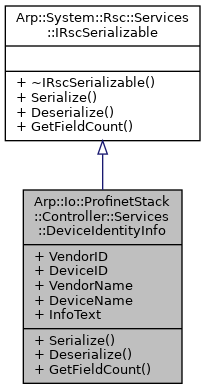

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::DeviceIdentityInfo:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
uint16	VendorID = 0
	ID of the device vendor More...

uint16	DeviceID = 0
	ID of the device type More...

RscString< 512 >	VendorName
	Name of the vendor from the GSD More...

RscString< 512 >	DeviceName
	Name of the device type from the GSD More...

RscString< 512 >	InfoText
	Info text of the device type from the GSD More...

Detailed Description

This struct contains the vendor name and the device name of one device

Member Function Documentation

◆ Deserialize()

void Arp::Io::ProfinetStack::Controller::Services::DeviceIdentityInfo::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

Implements Arp::System::Rsc::Services::IRscSerializable.

◆ Serialize()

void Arp::Io::ProfinetStack::Controller::Services::DeviceIdentityInfo::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

Implements Arp::System::Rsc::Services::IRscSerializable.

Member Data Documentation

◆ DeviceID

uint16 Arp::Io::ProfinetStack::Controller::Services::DeviceIdentityInfo::DeviceID = 0

ID of the device type

◆ DeviceName

RscString<512> Arp::Io::ProfinetStack::Controller::Services::DeviceIdentityInfo::DeviceName

Name of the device type from the GSD

◆ InfoText

RscString<512> Arp::Io::ProfinetStack::Controller::Services::DeviceIdentityInfo::InfoText

Info text of the device type from the GSD

◆ VendorID

uint16 Arp::Io::ProfinetStack::Controller::Services::DeviceIdentityInfo::VendorID = 0

ID of the device vendor

◆ VendorName

RscString<512> Arp::Io::ProfinetStack::Controller::Services::DeviceIdentityInfo::VendorName

Name of the vendor from the GSD

The documentation for this class was generated from the following file:

Arp/Io/ProfinetStack/Controller/Services/DeviceIdentityInfo.hpp
