Container for a combination of an error code and a value which is a result for a read operation to a single setting. More...
#include <ArInfo.hpp>
Public Member Functions | |
| void | Serialize (RscWriter &writer) const override |
| Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More... | |
| void | Deserialize (RscReader &reader) override |
| Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More... | |

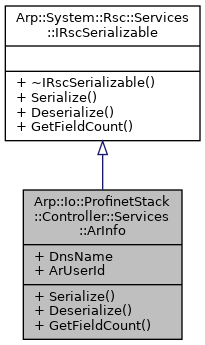

 Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable | |
| virtual | ~IRscSerializable ()=default |
| default destructor More... | |
Static Public Member Functions | |
| static constexpr size_t | GetFieldCount (void) |
| Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable | |
| static size_t | GetFieldCount (void) |
| Returns the count of fields of the struct type More... | |
Public Attributes | |
| RscString< 256 > | DnsName |
| The configured dns station name of the profinet device. According to profinet spec. the maximum string size is 240. More... | |
| uint16 | ArUserId = 0 |
| The configured ArUserId of the profinet device. More... | |
Detailed Description
Container for a combination of an error code and a value which is a result for a read operation to a single setting.
A sequence of instances of this structure is used as result by Arp.Io.ProfinetStack.Controller.Services.IArDataService.GetAllArInfo.
Member Function Documentation
◆ Deserialize()
|
inlineoverridevirtual |
Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.
- Parameters
-
reader Reference to RscReader.
Implements Arp::System::Rsc::Services::IRscSerializable.
◆ Serialize()
|
inlineoverridevirtual |
Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.
- Parameters
-
writer Reference to RscWriter
Implements Arp::System::Rsc::Services::IRscSerializable.
Member Data Documentation
◆ ArUserId
| uint16 Arp::Io::ProfinetStack::Controller::Services::ArInfo::ArUserId = 0 |
The configured ArUserId of the profinet device.
◆ DnsName
| RscString<256> Arp::Io::ProfinetStack::Controller::Services::ArInfo::DnsName |
The configured dns station name of the profinet device. According to profinet spec. the maximum string size is 240.
The documentation for this class was generated from the following file:
- Arp/Io/ProfinetStack/Controller/Services/ArInfo.hpp
