Use this service for acyclic communication with Profibus slaves More...

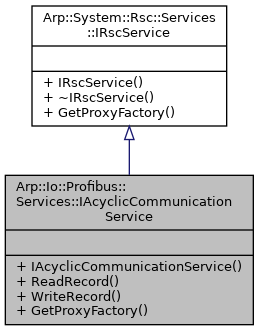

Inheritance diagram for Arp::Io::Profibus::Services::IAcyclicCommunicationService:

Public Types
using	Ptr = std::shared_ptr< IAcyclicCommunicationService >

Public Types inherited from Arp::System::Rsc::Services::IRscService
typedef std::shared_ptr< IRscService >	Ptr

Public Member Functions
	IAcyclicCommunicationService (void)=default
	Constructs an IAcyclicCommunicationService instance. More...

virtual RecordResult	ReadRecord (const RecordParameters &parameters, std::vector< uint8 > &data)=0
	Reads object from Profibus module More...

virtual RecordResult	WriteRecord (const RecordParameters &parameters, const std::vector< uint8 > &data)=0
	Writes object to Profibus module More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
	IRscService (void)=default
	Constructs an IRscService instance. More...

virtual	~IRscService (void)=default
	Destructs this instance and frees all resouces. More...

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of the service More...

Detailed Description

Use this service for acyclic communication with Profibus slaves

This service is defined in library Arp.Io.Profibus.

Constructor & Destructor Documentation

Arp::Io::Profibus::Services::IAcyclicCommunicationService::IAcyclicCommunicationService ( void )

default

virtual RecordResult Arp::Io::Profibus::Services::IAcyclicCommunicationService::ReadRecord	(	const RecordParameters &	parameters,
		std::vector< uint8 > &	data
	)

pure virtual

Reads object from Profibus module

Parameters

parameters	Structure with paramaters of module and object
data	Data read from object

virtual RecordResult Arp::Io::Profibus::Services::IAcyclicCommunicationService::WriteRecord	(	const RecordParameters &	parameters,
		const std::vector< uint8 > &	data
	)

pure virtual

Writes object to Profibus module

Parameters

parameters	Structure with parameters of module and object
data	Data to write in object

The documentation for this class was generated from the following file:
