Represents the result of the validation of a device identity. More...

#include <IdentityValidationResult.hpp>

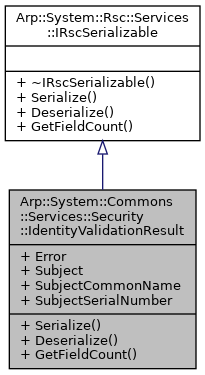

Inheritance diagram for Arp::System::Commons::Services::Security::IdentityValidationResult:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
IdentityValidationError	Error = static_cast<IdentityValidationError>(0)
	The numeric indication about success or failure of the validation. More...

RscString< 512 >	Subject
	The subject field from the certificate of the identity represented as text conforming to RFC 2253. More...

RscString< 80 >	SubjectCommonName
	The CommonName component of the subject field from the certificate of the identity. More...

RscString< 80 >	SubjectSerialNumber
	The SerialNumbner component of the subject field from the certificate of the identity. More...

Detailed Description

Represents the result of the validation of a device identity.

Member Function Documentation

◆ Deserialize()

void Arp::System::Commons::Services::Security::IdentityValidationResult::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

Implements Arp::System::Rsc::Services::IRscSerializable.

◆ Serialize()

void Arp::System::Commons::Services::Security::IdentityValidationResult::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

Implements Arp::System::Rsc::Services::IRscSerializable.

Member Data Documentation

◆ Error

IdentityValidationError Arp::System::Commons::Services::Security::IdentityValidationResult::Error = static_cast<IdentityValidationError>(0)

The numeric indication about success or failure of the validation.

◆ Subject

RscString<512> Arp::System::Commons::Services::Security::IdentityValidationResult::Subject

The subject field from the certificate of the identity represented as text conforming to RFC 2253.

This is valid only if Arp.System.Commons.Services.Security.IdentityValidationResult.Error is Arp.System.Commons.Services.Security.IdentityValidationError.None.

◆ SubjectCommonName

RscString<80> Arp::System::Commons::Services::Security::IdentityValidationResult::SubjectCommonName

The CommonName component of the subject field from the certificate of the identity.

This is valid only if Arp.System.Commons.Services.Security.IdentityValidationResult.Error is Arp.System.Commons.Services.Security.IdentityValidationError.None. A certificate does not need to have the component. Then this string is empty. But by convention certificates usually have such a component.

◆ SubjectSerialNumber

RscString<80> Arp::System::Commons::Services::Security::IdentityValidationResult::SubjectSerialNumber

The SerialNumbner component of the subject field from the certificate of the identity.

This is valid only if Arp.System.Commons.Services.Security.IdentityValidationResult.Error is Arp.System.Commons.Services.Security.IdentityValidationError.None. A certificate does not need to have the component. Then this string is empty. Please note that this serial number is NOT the serial number of the certificate. But it is the serial number component from the subject of the certificate. Only very few certificates have this component in the subject. Some device vendors put the serial number of the device into the subject this way. PHOENIX CONTACT does so.

The documentation for this class was generated from the following file:

Arp/System/Commons/Services/Security/IdentityValidationResult.hpp
