Arp::Plc::Gds::Services::ForceItem Class Reference

A force item structure. More...

#include <ForceItem.hpp>

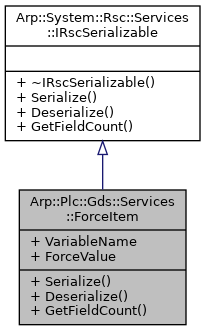

Inheritance diagram for Arp::Plc::Gds::Services::ForceItem:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...
void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...
Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)
Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
RscString< 512 >	VariableName
	The instance path of the forced item. More...
RscVariant< 512 >	ForceValue
	The value of the forced item. More...

Detailed Description

A force item structure.

Member Function Documentation

Deserialize()

void Arp::Plc::Gds::Services::ForceItem::Deserialize ( RscReader &  reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader

Reference to RscReader.

Implements Arp::System::Rsc::Services::IRscSerializable.

Serialize()

void Arp::Plc::Gds::Services::ForceItem::Serialize ( RscWriter &  writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer

Reference to RscWriter

Implements Arp::System::Rsc::Services::IRscSerializable.

Member Data Documentation

ForceValue

RscVariant<512> Arp::Plc::Gds::Services::ForceItem::ForceValue

The value of the forced item.

VariableName

RscString<512> Arp::Plc::Gds::Services::ForceItem::VariableName

The instance path of the forced item.

---

The documentation for this class was generated from the following file:

• Arp/Plc/Gds/Services/ForceItem.hpp
