Arp::Plc::Commons::Meta::MetaLibraryBase Class Reference

Base class for libraries providing meta data More...

#include <MetaLibraryBase.hpp>

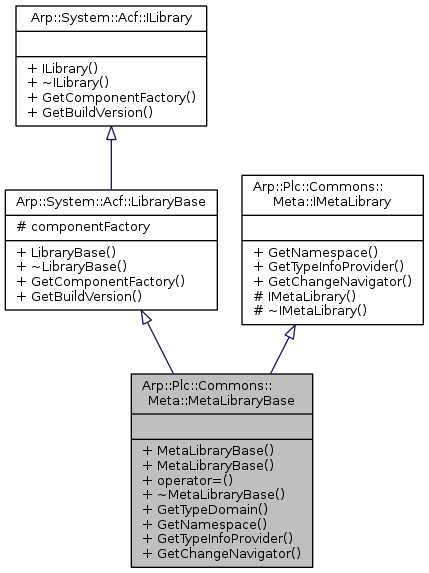

Inheritance diagram for Arp::Plc::Commons::Meta::MetaLibraryBase:

Public Member Functions
	MetaLibraryBase (AppDomain &appDomain, const Version &buildVersion, TypeDomain &typeDomain)
	Constructs an MetaLibraryBase instance. More...
	MetaLibraryBase (const MetaLibraryBase &arg)=default
	Copy constructor. More...
MetaLibraryBase &	operator= (const MetaLibraryBase &arg)=default
	Assignment operator. More...
	~MetaLibraryBase (void) override=default
	Destructs this instance and frees all resources. More...
TypeDomain &	GetTypeDomain ()
const char *	GetNamespace (void) override
	Gets the namespace of this library. More...
ITypeInfoProvider &	GetTypeInfoProvider (bool useBackgroundDomain) override
	Gets the ITypeInfoProvider of this library. More...
IChangeNavigator *	GetChangeNavigator (void) override
	Gets the specialized IChangeNavigator of this component. More...
Public Member Functions inherited from Arp::System::Acf::LibraryBase
	LibraryBase (AppDomain &appDomain, const Version &buildVersion)
	Constructs an isntance of class LibraryBase. More...
virtual	~LibraryBase (void)=default
	The default destructor. More...
IComponentFactory &	GetComponentFactory (void) override
	Gets the component factory of this library to create instances of its provided components. More...
const Version &	GetBuildVersion (void) const override
	Gets the SDK version of the SDK used to build the shared library. More...
Public Member Functions inherited from Arp::System::Acf::ILibrary
	ILibrary (void)=default
	The default constructor. More...
virtual	~ILibrary (void)=default
	The default destructor. More...

Additional Inherited Members
Public Types inherited from Arp::System::Acf::ILibrary
typedef ILibrary *	Ptr
	The pointer type of this interface. More...
typedef ILibrary &(*	MainEntry) (AppDomain &appDomain)
	This is the prototype of the main entry point of any library which shall be loaded dynamically by the Acf. More...
Public Types inherited from Arp::Plc::Commons::Meta::IMetaLibrary
typedef std::shared_ptr< IMetaLibrary >	Ptr
	std::shared_ptr to IMetaLibrary More...
Protected Types inherited from Arp::System::Acf::ILibrary
typedef void(*	Main) (AppDomain &appDomain)
	This is the prototype of the (static) entry point or auxiliary operation of any library class. More...
Protected Member Functions inherited from Arp::Plc::Commons::Meta::IMetaLibrary
	IMetaLibrary (void)=default
	Constructs an IMetaLibrary instance. More...
virtual	~IMetaLibrary (void)=default
	Destructs this instance and frees all resources. More...
Protected Attributes inherited from Arp::System::Acf::LibraryBase
ComponentFactory	componentFactory
	This field is used to register library specific component factory methods.

Detailed Description

Base class for libraries providing meta data

Constructor & Destructor Documentation

MetaLibraryBase() [1/2]

Arp::Plc::Commons::Meta::MetaLibraryBase::MetaLibraryBase ( AppDomain &  appDomain, const Version &  buildVersion, TypeDomain &  typeDomain  )

inline

Constructs an MetaLibraryBase instance.

Parameters

appDomain	Reference to the current AppDomain
buildVersion	Version of this library
typeDomain	Refrence to this library's TypeDomain

MetaLibraryBase() [2/2]

Arp::Plc::Commons::Meta::MetaLibraryBase::MetaLibraryBase ( const MetaLibraryBase &  arg )

default

Copy constructor.

~MetaLibraryBase()

Arp::Plc::Commons::Meta::MetaLibraryBase::~MetaLibraryBase ( void  )

overridedefault

Destructs this instance and frees all resources.

Member Function Documentation

GetChangeNavigator()

IChangeNavigator * Arp::Plc::Commons::Meta::MetaLibraryBase::GetChangeNavigator ( void  )

inlineoverridevirtual

Gets the specialized IChangeNavigator of this component.

Returns

The change navigator of this component or nullptr if it's not provided.

Implements Arp::Plc::Commons::Meta::IMetaLibrary.

GetNamespace()

const char * Arp::Plc::Commons::Meta::MetaLibraryBase::GetNamespace ( void  )

inlineoverridevirtual

Gets the namespace of this library.

Returns

The namespace of this library.

Implements Arp::Plc::Commons::Meta::IMetaLibrary.

GetTypeInfoProvider()

ITypeInfoProvider & Arp::Plc::Commons::Meta::MetaLibraryBase::GetTypeInfoProvider ( bool  useBackgroundDomain )

inlineoverridevirtual

Gets the ITypeInfoProvider of this library.

Returns

The type info provider of this library.

Parameters

useBackgroundDomain

true if the provider of the background domain should be returned, otherwise false.

Implements Arp::Plc::Commons::Meta::IMetaLibrary.

operator=()

MetaLibraryBase& Arp::Plc::Commons::Meta::MetaLibraryBase::operator= ( const MetaLibraryBase &  arg )

default

Assignment operator.

---

The documentation for this class was generated from the following file:

• Arp/Plc/Commons/Meta/MetaLibraryBase.hpp
