Contains the ident numbers and names the corresponding module and submodule of a node. More...

#include <NodeIdentityInfo.hpp>

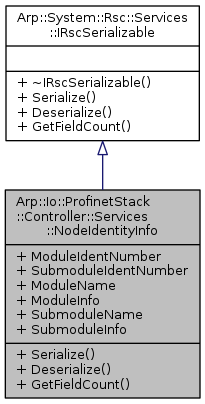

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::NodeIdentityInfo:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
uint32	ModuleIdentNumber = 0
	ModuleIdentNumber More...

uint32	SubmoduleIdentNumber = 0
	SubmoduleIdentNumber More...

RscString< 512 >	ModuleName
	Text name of the module type More...

RscString< 512 >	ModuleInfo
	Info text of the module type More...

RscString< 512 >	SubmoduleName
	Text name of the SubmoduleName More...

RscString< 512 >	SubmoduleInfo
	Info text of the SubmoduleName More...

Detailed Description

Contains the ident numbers and names the corresponding module and submodule of a node.

Member Function Documentation

◆ Deserialize()

void Arp::Io::ProfinetStack::Controller::Services::NodeIdentityInfo::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

Implements Arp::System::Rsc::Services::IRscSerializable.

◆ Serialize()

void Arp::Io::ProfinetStack::Controller::Services::NodeIdentityInfo::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

Implements Arp::System::Rsc::Services::IRscSerializable.

Member Data Documentation

◆ ModuleIdentNumber

uint32 Arp::Io::ProfinetStack::Controller::Services::NodeIdentityInfo::ModuleIdentNumber = 0

ModuleIdentNumber

◆ ModuleInfo

RscString<512> Arp::Io::ProfinetStack::Controller::Services::NodeIdentityInfo::ModuleInfo

Info text of the module type

◆ ModuleName

RscString<512> Arp::Io::ProfinetStack::Controller::Services::NodeIdentityInfo::ModuleName

Text name of the module type

◆ SubmoduleIdentNumber

uint32 Arp::Io::ProfinetStack::Controller::Services::NodeIdentityInfo::SubmoduleIdentNumber = 0

SubmoduleIdentNumber

◆ SubmoduleInfo

RscString<512> Arp::Io::ProfinetStack::Controller::Services::NodeIdentityInfo::SubmoduleInfo

Info text of the SubmoduleName

◆ SubmoduleName

RscString<512> Arp::Io::ProfinetStack::Controller::Services::NodeIdentityInfo::SubmoduleName

Text name of the SubmoduleName

The documentation for this class was generated from the following file:

Arp/Io/ProfinetStack/Controller/Services/NodeIdentityInfo.hpp
