PLCnext API Documentation  22.3.0.20
Public Types | Public Member Functions | Static Public Member Functions | List of all members
Arp::Io::ProfinetStack::Controller::Services::IAlarmService Class Referenceabstract

Use this service to work receive PROFINET alarms More...

#include <IAlarmService.hpp>

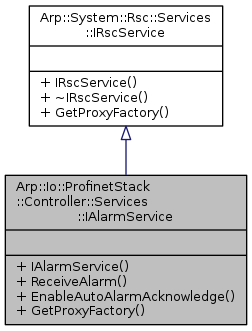

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::IAlarmService:
Inheritance graph

Public Types

using Ptr = std::shared_ptr< IAlarmService >

- Public Types inherited from Arp::System::Rsc::Services::IRscService
typedef std::shared_ptr< IRscServicePtr


Public Member Functions

 IAlarmService (void)=default
 Constructs an IAlarmService instance. More...

virtual uint32 ReceiveAlarm (uint32 id, AlarmInfo &alarmInfo)=0
 Receive a PROFINET alarm More...

virtual void EnableAutoAlarmAcknowledge (boolean value)=0
 Change setting of automatic alarm acknowledge. More...

- Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
 IRscService (void)=default
 Constructs an IRscService instance. More...

virtual ~IRscService (void)=default
 Destructs this instance and frees all resouces. More...


Static Public Member Functions

static IRscServiceProxyFactory & GetProxyFactory (void)

- Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
static IRscServiceProxyFactory & GetProxyFactory (void)
 Returns a reference to service proxy factory to create a proxy instance of the service More...


Detailed Description

Use this service to work receive PROFINET alarms

Constructor & Destructor Documentation

◆ IAlarmService()

Arp::Io::ProfinetStack::Controller::Services::IAlarmService::IAlarmService ( void  )
default

Constructs an IAlarmService instance.

Member Function Documentation

◆ EnableAutoAlarmAcknowledge()

virtual void Arp::Io::ProfinetStack::Controller::Services::IAlarmService::EnableAutoAlarmAcknowledge ( boolean  value)
pure virtual

Change setting of automatic alarm acknowledge.

Parameters
valueSet value = true to activate automatic alarm acknowledge and value = false to deactivate automatic alarm acknowledge.

◆ ReceiveAlarm()

virtual uint32 Arp::Io::ProfinetStack::Controller::Services::IAlarmService::ReceiveAlarm ( uint32  id,
AlarmInfo alarmInfo
)
pure virtual

Receive a PROFINET alarm

Parameters
idNode ID
alarmInfoStructure with all alarm information Arp.Io.ProfinetStack.Controller.Services.AlarmInfo
Returns

Status of service

ToDo

ToDo


The documentation for this class was generated from the following file:
