Result on successful PcpInitiate service More...

#include <PositiveInitiateResult.hpp>

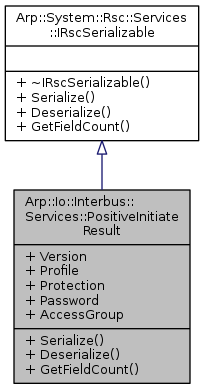

Inheritance diagram for Arp::Io::Interbus::Services::PositiveInitiateResult:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
uint16	Version = 0
	Version of object list More...

uint16	Profile = 0
	Device profile More...

uint8	Protection = 0
	Contains the attribute Access_Protection_Supported. If Protection = 0xFF, the access is protected. More...

uint8	Password = 0
	Manufacturer specific password. (Default: Password = 0) More...

uint8	AccessGroup = 0
	Manufacturer specific assignment of connection group More...

Detailed Description

Result on successful PcpInitiate service

Member Function Documentation

◆ Deserialize()

void Arp::Io::Interbus::Services::PositiveInitiateResult::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

Implements Arp::System::Rsc::Services::IRscSerializable.

◆ Serialize()

void Arp::Io::Interbus::Services::PositiveInitiateResult::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

Implements Arp::System::Rsc::Services::IRscSerializable.

Member Data Documentation

◆ AccessGroup

uint8 Arp::Io::Interbus::Services::PositiveInitiateResult::AccessGroup = 0

Manufacturer specific assignment of connection group

◆ Password

uint8 Arp::Io::Interbus::Services::PositiveInitiateResult::Password = 0

Manufacturer specific password. (Default: Password = 0)

◆ Profile

uint16 Arp::Io::Interbus::Services::PositiveInitiateResult::Profile = 0

Device profile

◆ Protection

uint8 Arp::Io::Interbus::Services::PositiveInitiateResult::Protection = 0

Contains the attribute Access_Protection_Supported. If Protection = 0xFF, the access is protected.

◆ Version

uint16 Arp::Io::Interbus::Services::PositiveInitiateResult::Version = 0

Version of object list

The documentation for this class was generated from the following file:

Arp/Io/Interbus/Services/PositiveInitiateResult.hpp
