Provides informations about the Plc (realtime) project. More...

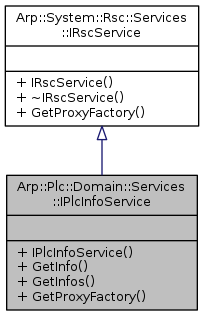

Inheritance diagram for Arp::Plc::Domain::Services::IPlcInfoService:

Public Types
using	Ptr = std::shared_ptr< IPlcInfoService >

Public Types inherited from Arp::System::Rsc::Services::IRscService
typedef std::shared_ptr< IRscService >	Ptr

Public Member Functions
	IPlcInfoService (void)=default
	Constructs an IPlcInfoService instance. More...

virtual RscVariant< 256 >	GetInfo (PlcInfoId identifier)=0
	Gets the specified info from the Plc project. More...

virtual std::vector< RscVariant< 256 > >	GetInfos (const std::vector< PlcInfoId > &identifiers)=0
	Gets the specified infos from the Plc project. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
	IRscService (void)=default
	Constructs an IRscService instance. More...

virtual	~IRscService (void)=default
	Destructs this instance and frees all resouces. More...

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of the service More...

Detailed Description

Provides informations about the Plc (realtime) project.

Constructor & Destructor Documentation

Arp::Plc::Domain::Services::IPlcInfoService::IPlcInfoService ( void )

default

Constructs an IPlcInfoService instance.

virtual RscVariant<256> Arp::Plc::Domain::Services::IPlcInfoService::GetInfo ( PlcInfoId identifier )

pure virtual

Gets the specified info from the Plc project.

Parameters

identifier The identifier of the info to read.

virtual std::vector<RscVariant<256> > Arp::Plc::Domain::Services::IPlcInfoService::GetInfos ( const std::vector< PlcInfoId > & identifiers )

pure virtual

Gets the specified infos from the Plc project.

Parameters

identifiers The identifiers of the infos to read.

Returns: The requested infos as array. If an identifiers is unknown, the according array element is null.
