Module data with differences More...

#include <ModuleDifference.hpp>

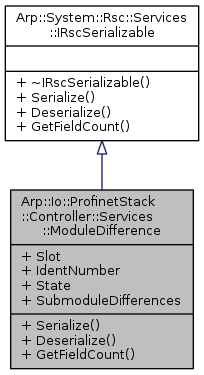

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::ModuleDifference:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes

uint16 Slot = 0

Slot number More...

uint32 IdentNumber = 0

Module IdentNumber More...

uint16 State = 0

Module state. It can contain the following values:

Value	Description
0x0000	No module (e.g. module not plugged).
0x0001	Wrong module (e.g. ident number wrong).
0x0002	Module is okay, but at least one submodule is locked, wrong or missing.
0x0003	Module is not the same as requested, but the IO device was able to adapt through its own knowledge

More...

std::vector< SubmoduleDifference > SubmoduleDifferences

Configured submodules with differences More...

Detailed Description

Module data with differences

Member Function Documentation

◆ Deserialize()

void Arp::Io::ProfinetStack::Controller::Services::ModuleDifference::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

Implements Arp::System::Rsc::Services::IRscSerializable.

◆ Serialize()

void Arp::Io::ProfinetStack::Controller::Services::ModuleDifference::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

Implements Arp::System::Rsc::Services::IRscSerializable.

Member Data Documentation

◆ IdentNumber

uint32 Arp::Io::ProfinetStack::Controller::Services::ModuleDifference::IdentNumber = 0

Module IdentNumber

◆ Slot

uint16 Arp::Io::ProfinetStack::Controller::Services::ModuleDifference::Slot = 0

Slot number

◆ State

uint16 Arp::Io::ProfinetStack::Controller::Services::ModuleDifference::State = 0

Module state. It can contain the following values:

Value	Description
0x0000	No module (e.g. module not plugged).
0x0001	Wrong module (e.g. ident number wrong).
0x0002	Module is okay, but at least one submodule is locked, wrong or missing.
0x0003	Module is not the same as requested, but the IO device was able to adapt through its own knowledge

◆ SubmoduleDifferences

std::vector<SubmoduleDifference> Arp::Io::ProfinetStack::Controller::Services::ModuleDifference::SubmoduleDifferences

Configured submodules with differences

The documentation for this class was generated from the following file:

Arp/Io/ProfinetStack/Controller/Services/ModuleDifference.hpp
