Contains the information where a diagnosis is located on the device according to "Guideline for PROFINET - Diagnosis for PROFINET" More...

#include <DiagnosisSource.hpp>

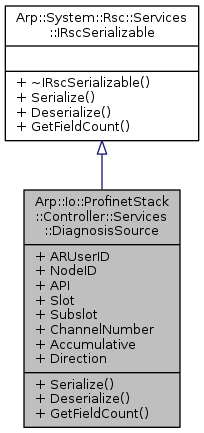

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::DiagnosisSource:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor More...

Static Public Member Functions
static constexpr size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
uint16	ARUserID = 0
	User ID of the application relation More...

uint32	NodeID = 0
	NodeID of the diagnosis source More...

uint32	API = 0
	Application Process Identifier of the diagnosis source More...

uint16	Slot = 0
	Slot numer of the diagnosis source More...

uint16	Subslot = 0
	Subslot number of the diagnosis source More...

uint16	ChannelNumber = 0
	Channel Number of the diagnosis source. If set to 0x8000 the channel number adresses the whole submodule. More...

boolean	Accumulative = false
	If set to true the diagnosis source addresses a channel group. More...

DiagnosisDirection	Direction = static_cast<DiagnosisDirection>(0)
	Direction of the channel of the diagnosis source. More...

Detailed Description

Contains the information where a diagnosis is located on the device according to "Guideline for PROFINET - Diagnosis for PROFINET"

Member Function Documentation

◆ Deserialize()

void Arp::Io::ProfinetStack::Controller::Services::DiagnosisSource::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

Implements Arp::System::Rsc::Services::IRscSerializable.

◆ Serialize()

void Arp::Io::ProfinetStack::Controller::Services::DiagnosisSource::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

Implements Arp::System::Rsc::Services::IRscSerializable.

Member Data Documentation

◆ Accumulative

boolean Arp::Io::ProfinetStack::Controller::Services::DiagnosisSource::Accumulative = false

If set to true the diagnosis source addresses a channel group.

◆ API

uint32 Arp::Io::ProfinetStack::Controller::Services::DiagnosisSource::API = 0

Application Process Identifier of the diagnosis source

◆ ARUserID

uint16 Arp::Io::ProfinetStack::Controller::Services::DiagnosisSource::ARUserID = 0

User ID of the application relation

◆ ChannelNumber

uint16 Arp::Io::ProfinetStack::Controller::Services::DiagnosisSource::ChannelNumber = 0

Channel Number of the diagnosis source. If set to 0x8000 the channel number adresses the whole submodule.

◆ Direction

DiagnosisDirection Arp::Io::ProfinetStack::Controller::Services::DiagnosisSource::Direction = static_cast<DiagnosisDirection>(0)

Direction of the channel of the diagnosis source.

◆ NodeID

uint32 Arp::Io::ProfinetStack::Controller::Services::DiagnosisSource::NodeID = 0

NodeID of the diagnosis source

◆ Slot

uint16 Arp::Io::ProfinetStack::Controller::Services::DiagnosisSource::Slot = 0

Slot numer of the diagnosis source

◆ Subslot

uint16 Arp::Io::ProfinetStack::Controller::Services::DiagnosisSource::Subslot = 0

Subslot number of the diagnosis source

The documentation for this class was generated from the following file:

Arp/Io/ProfinetStack/Controller/Services/DiagnosisSource.hpp
