PLCnext API Documentation  21.9.0.40
Public Types | Public Member Functions | Static Public Member Functions | List of all members
Arp::System::Commons::Services::Io::IFileService Class Referenceabstract

Provides common file operations for several files in a single call. More...

#include <IFileService.hpp>

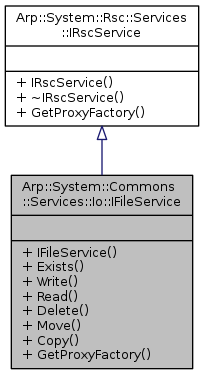

Inheritance diagram for Arp::System::Commons::Services::Io::IFileService:
Inheritance graph

Public Types

using Ptr = std::shared_ptr< IFileService >

- Public Types inherited from Arp::System::Rsc::Services::IRscService
typedef std::shared_ptr< IRscServicePtr


Public Member Functions

 IFileService (void)=default
 Constructs an IFileService instance. More...

virtual boolean Exists (const RscString< 512 > &path)=0
 Checks if the specified file exists. More...

virtual FileSystemError Write (const RscString< 512 > &filePath, boolean overwrite, const std::vector< TraitItem > &traitItems, RscStream &data)=0
 Writes the given data to the specified file. More...

virtual FileSystemError Read (Traits fileTraits, const RscString< 512 > &filePath, RscStream &data, std::vector< TraitItem > &traitItems)=0
 Reads the specified file from device. More...

virtual FileSystemError Delete (const RscString< 512 > &filePath)=0
 Deletes the specified file. More...

virtual FileSystemError Move (boolean createDirectory, boolean overwrite, const RscString< 512 > &sourceFilePath, const RscString< 512 > &destinationFilePath)=0
 Moves the specified file. More...

virtual FileSystemError Copy (boolean createDirectory, boolean overwrite, const RscString< 512 > &sourceFilePath, const RscString< 512 > &destinationFilePath)=0
 Copies the specified files. More...

- Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
 IRscService (void)=default
 Constructs an IRscService instance. More...

virtual ~IRscService (void)=default
 Destructs this instance and frees all resouces. More...


Static Public Member Functions

static IRscServiceProxyFactory & GetProxyFactory (void)

- Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
static IRscServiceProxyFactory & GetProxyFactory (void)
 Returns a reference to service proxy factory to create a proxy instance of the service More...


Detailed Description

Provides common file operations for several files in a single call.

The path separator is always '/'.

Constructor & Destructor Documentation

◆ IFileService()

Arp::System::Commons::Services::Io::IFileService::IFileService ( void  )
default

Constructs an IFileService instance.

Member Function Documentation

◆ Copy()

virtual FileSystemError Arp::System::Commons::Services::Io::IFileService::Copy ( boolean  createDirectory,
boolean  overwrite,
const RscString< 512 > &  sourceFilePath,
const RscString< 512 > &  destinationFilePath
)
pure virtual

Copies the specified files.

Parameters
createDirectoryif set to true the directory of the file is created (recursively), if it does not exists yet.
overwriteif set to true the destination file is overwritten, if it yet exists, otherwise an error is returned.
sourceFilePathThe source path of the file to copy.
destinationFilePathThe destination path of the file to copy.
Returns
Result of the action.

◆ Delete()

virtual FileSystemError Arp::System::Commons::Services::Io::IFileService::Delete ( const RscString< 512 > &  filePath)
pure virtual

Deletes the specified file.

Parameters
filePathThe pathe of the file to delete.
Returns
Result of the action.

◆ Exists()

virtual boolean Arp::System::Commons::Services::Io::IFileService::Exists ( const RscString< 512 > &  path)
pure virtual

Checks if the specified file exists.

Parameters
pathPath of the file to check.
Returns
true if the file exists, otherwise false.

◆ Move()

virtual FileSystemError Arp::System::Commons::Services::Io::IFileService::Move ( boolean  createDirectory,
boolean  overwrite,
const RscString< 512 > &  sourceFilePath,
const RscString< 512 > &  destinationFilePath
)
pure virtual

Moves the specified file.

Parameters
createDirectoryif set to true the directory of the file is created (recursively), if it does not exists yet.
overwriteif set to true the destination file is overwritten, if it yet exists, otherwise an error is returned.
sourceFilePathThe source path of the file to move.
destinationFilePathThe destination path of the file to move.
Returns
Result of the action.

◆ Read()

virtual FileSystemError Arp::System::Commons::Services::Io::IFileService::Read ( Traits  fileTraits,
const RscString< 512 > &  filePath,
RscStream data,
std::vector< TraitItem > &  traitItems
)
pure virtual

Reads the specified file from device.

Parameters
fileTraitsSpecifies the file traits to read, if this value is not Arp.System.Commons.Services.Io.Traits.None.
filePathThe path of the file to read.
dataData read from the specified file.
traitItemsSpecified trait items read from the specified file.
Returns
Result of the action.

◆ Write()

virtual FileSystemError Arp::System::Commons::Services::Io::IFileService::Write ( const RscString< 512 > &  filePath,
boolean  overwrite,
const std::vector< TraitItem > &  traitItems,
RscStream data
)
pure virtual

Writes the given data to the specified file.

Parameters
filePathPath of the file on the target.
overwriteIf set to true the destination file is overwritten, if it yet exists, otherwise an error is returned.
traitItemsTrait items to set up after writing the file.
dataData to writing into the specified file.
Returns
Result of the action.

The documentation for this class was generated from the following file:
