PLCnext API Documentation  21.6.0.46
Public Types | Public Member Functions | Static Public Member Functions | List of all members
Arp::System::Um::Services::ISessionService Class Referenceabstract

UserManager Service to retrieve and set session properties like sessionId and extended session informations More...

#include <ISessionService.hpp>

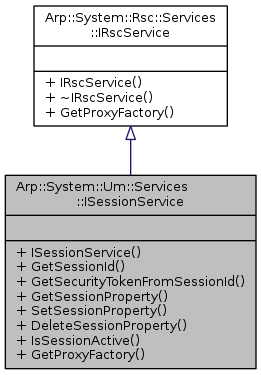

Inheritance diagram for Arp::System::Um::Services::ISessionService:
Inheritance graph

Public Types

using Ptr = std::shared_ptr< ISessionService >

- Public Types inherited from Arp::System::Rsc::Services::IRscService
typedef std::shared_ptr< IRscServicePtr


Public Member Functions

 ISessionService (void)=default
 Constructs an ISessionService instance. More...

virtual boolean GetSessionId (SecurityToken securityToken, RscString< 128 > &sessionId)=0
 Gets a sessionId (strong security Token) for a Um session. More...

virtual boolean GetSecurityTokenFromSessionId (const RscString< 128 > &sessionId, SecurityToken &securityToken)=0
 Searchs for a Um Session identified by a StrongSecurityToken. If a valid session was found the Um securityToken is returned in parameter securityToken More...

virtual boolean GetSessionProperty (SecurityToken securityToken, const RscString< 128 > &key, RscString< 128 > &value)=0
 Read a named property from a Um session. A property is extended information bound to a um session identified by a key. Example the user which opened the session. More...

virtual boolean SetSessionProperty (SecurityToken securityToken, const RscString< 128 > &key, const RscString< 128 > &value)=0
 Sets a named property for a Um session. A property is extended information bound to a um session identified by a key. Example the user which opened the session. More...

virtual boolean DeleteSessionProperty (SecurityToken securityToken, const RscString< 128 > &key)=0
 Deletes a named property for a Um session. More...

virtual boolean IsSessionActive (SecurityToken securityToken)=0
 Check if the um session is active or not. More...

- Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
 IRscService (void)=default
 Constructs an IRscService instance. More...

virtual ~IRscService (void)=default
 Destructs this instance and frees all resouces. More...


Static Public Member Functions

static IRscServiceProxyFactory & GetProxyFactory (void)

- Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
static IRscServiceProxyFactory & GetProxyFactory (void)
 Returns a reference to service proxy factory to create a proxy instance of the service More...


Detailed Description

UserManager Service to retrieve and set session properties like sessionId and extended session informations

This service is only usable from the SDK for other processes running on the PLC; it is not intended for public use over RSC.

Constructor & Destructor Documentation

◆ ISessionService()

Arp::System::Um::Services::ISessionService::ISessionService ( void  )
default

Constructs an ISessionService instance.

Member Function Documentation

◆ DeleteSessionProperty()

virtual boolean Arp::System::Um::Services::ISessionService::DeleteSessionProperty ( SecurityToken  securityToken,
const RscString< 128 > &  key
)
pure virtual

Deletes a named property for a Um session.

Parameters
securityTokenthe um securityToken identifying the session
keykey identifying the extended info which should be deleted
Returns
false if the strongSecurityToken is not valid, true if securityToken is returned

◆ GetSecurityTokenFromSessionId()

virtual boolean Arp::System::Um::Services::ISessionService::GetSecurityTokenFromSessionId ( const RscString< 128 > &  sessionId,
SecurityToken securityToken
)
pure virtual

Searchs for a Um Session identified by a StrongSecurityToken. If a valid session was found the Um securityToken is returned in parameter securityToken

Parameters
sessionIdThe strong sessionId to search for
securityTokenreturns the securityToken for the Um session
Returns
false if the strongSecurityToken is not valid, true if securityToken is returned

◆ GetSessionId()

virtual boolean Arp::System::Um::Services::ISessionService::GetSessionId ( SecurityToken  securityToken,
RscString< 128 > &  sessionId
)
pure virtual

Gets a sessionId (strong security Token) for a Um session.

Parameters
securityTokenUm Security token identifying the session
sessionIdreturns the strongToken, only valid, if true is returned, Should be ignored otherwise
Returns
false if the securityToken is not valid, true if strongSecurityToken is returned

◆ GetSessionProperty()

virtual boolean Arp::System::Um::Services::ISessionService::GetSessionProperty ( SecurityToken  securityToken,
const RscString< 128 > &  key,
RscString< 128 > &  value
)
pure virtual

Read a named property from a Um session. A property is extended information bound to a um session identified by a key. Example the user which opened the session.

Parameters
securityTokenthe um securityToken identifying the session
keykey identifying the extended info
valuevalue of the session information identifying by key
Returns
false if the securityToken is not valid, true if securityToken is valid. Note: if the property is not set for this session an empty string is returned.

◆ IsSessionActive()

virtual boolean Arp::System::Um::Services::ISessionService::IsSessionActive ( SecurityToken  securityToken)
pure virtual

Check if the um session is active or not.

Parameters
securityTokenSecurity token of the session to be checked
Returns
An indication whether the session is active.

◆ SetSessionProperty()

virtual boolean Arp::System::Um::Services::ISessionService::SetSessionProperty ( SecurityToken  securityToken,
const RscString< 128 > &  key,
const RscString< 128 > &  value
)
pure virtual

Sets a named property for a Um session. A property is extended information bound to a um session identified by a key. Example the user which opened the session.

Parameters
securityTokenthe um securityToken identifying the session
keykey identifying the extended info
valuevalue to set as extended info for the um session
Returns
false if the securityToken is not valid, true if securityToken is valid.

The documentation for this class was generated from the following file:
