Provides the access to the AXIO master More...
#include <IAxioMasterService.hpp>
Public Types | |
using | Ptr = std::shared_ptr< IAxioMasterService > |

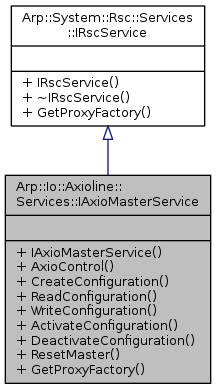

Public Types inherited from Arp::System::Rsc::Services::IRscService | |
typedef std::shared_ptr< IRscService > | Ptr |
Public Member Functions | |
IAxioMasterService (void)=default | |
Constructs an IAxioMasterService instance. More... | |
virtual uint16 | AxioControl (const std::vector< uint16 > &inData, std::vector< uint16 > &outData)=0 |
Raw AXIO service to communicate with the AXIO master. More... | |
virtual AxioResult | CreateConfiguration (uint16 frameReference)=0 |
Automatic creation of a new configuration More... | |
virtual AxioResult | ReadConfiguration (uint16 frameReference, std::vector< AxioDeviceConfiguration > &configuration)=0 |
Read current configuration More... | |
virtual AxioResult | WriteConfiguration (uint16 frameReference, const std::vector< AxioDeviceConfiguration > &configuration)=0 |
Write configuration More... | |
virtual AxioResult | ActivateConfiguration (uint16 frameReference)=0 |
Activate configuration More... | |
virtual AxioResult | DeactivateConfiguration (uint16 frameReference)=0 |
Deactivate configuration More... | |
virtual AxioResult | ResetMaster ()=0 |
Reset AXIO master More... | |
Public Member Functions inherited from Arp::System::Rsc::Services::IRscService | |
IRscService (void)=default | |
Constructs an IRscService instance. More... | |
virtual | ~IRscService (void)=default |
Destructs this instance and frees all resouces. More... | |
Static Public Member Functions | |
static IRscServiceProxyFactory & | GetProxyFactory (void) |
Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService | |
static IRscServiceProxyFactory & | GetProxyFactory (void) |
Returns a reference to service proxy factory to create a proxy instance of the service More... | |
Provides the access to the AXIO master
|
default |
Constructs an IAxioMasterService instance.
|
pure virtual |
Activate configuration
frameReference | Frame reference |
|
pure virtual |
Raw AXIO service to communicate with the AXIO master.
inData | Request Data to send to the AXIO master. Format has to be according to DDI specification. |
outData | Response Data received from the AXIO master. Format is according to DDI specification. |
|
pure virtual |
Automatic creation of a new configuration
frameReference | Frame reference |
|
pure virtual |
Deactivate configuration
frameReference | Frame reference |
|
pure virtual |
Read current configuration
frameReference | Frame reference |
configuration | Configuration of AXIO device Arp.Io.Axioline.Services.AxioDeviceConfiguration |
|
pure virtual |
Reset AXIO master
|
pure virtual |
Write configuration
frameReference | Frame reference |
configuration | Configuration of AXIO device Arp.Io.Axioline.Services.AxioDeviceConfiguration |
