Arp::Plc::Domain::Services::IPlcManagerService Class Referenceabstract

Use this service to control the PLC of the controller. More...

#include <IPlcManagerService.hpp>

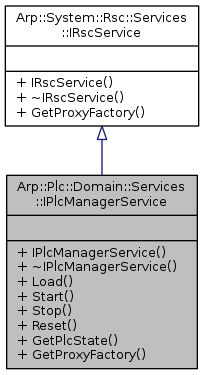

Inheritance diagram for Arp::Plc::Domain::Services::IPlcManagerService:
Inheritance graph

Public Types

typedef std::shared_ptr< IPlcManagerServicePtr

- Public Types inherited from Arp::System::Rsc::Services::IRscService
typedef std::shared_ptr< IRscServicePtr


Public Member Functions

 IPlcManagerService (void)
 Constructs an IPlcManagerService instance. More...

virtual ~IPlcManagerService (void)
 Destructs this instance and frees all resouces. More...

virtual void Load (boolean async=false)=0
 Loads the PLC configuration and setup the PLC. More...

virtual void Start (PlcStartKind startKind, boolean async=false)=0
 Starts the PLC. More...

virtual void Stop (boolean async=false)=0
 Stops the PLC. More...

virtual void Reset (boolean async=false)=0
 Resets the PLC and unloads its configuration. More...

virtual PlcState GetPlcState ()=0
 Gets the actual PLC state. More...

- Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
 IRscService (void)=default
 Constructs an IRscService instance. More...

virtual ~IRscService (void)=default
 Destructs this instance and frees all resouces. More...


Static Public Member Functions

static IRscServiceProxyFactory & GetProxyFactory (void)

- Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
static IRscServiceProxyFactory & GetProxyFactory (void)
 Returns a reference to service proxy factory to create a proxy instance of the service More...


Detailed Description

Use this service to control the PLC of the controller.

Constructor & Destructor Documentation

◆ IPlcManagerService()

Arp::Plc::Domain::Services::IPlcManagerService::IPlcManagerService ( void  )
inline

Constructs an IPlcManagerService instance.

◆ ~IPlcManagerService()

Arp::Plc::Domain::Services::IPlcManagerService::~IPlcManagerService ( void  )
inlinevirtual

Destructs this instance and frees all resouces.

Member Function Documentation

◆ GetPlcState()

virtual PlcState Arp::Plc::Domain::Services::IPlcManagerService::GetPlcState ( )
pure virtual

Gets the actual PLC state.

Returns
The current PLC state. If the PLC has a warning, the Arp.Plc.Domain.Services.PlcState.Warning Bit is set. If the PLC has an actual error, the Arp.Plc.Domain.Services.PlcState.Error Bit is set.

◆ Load()

virtual void Arp::Plc::Domain::Services::IPlcManagerService::Load ( boolean  async = false)
pure virtual

Loads the PLC configuration and setup the PLC.

Parameters
asynctrue, if the operation should be processed asynchronously, otherwise false.

◆ Reset()

virtual void Arp::Plc::Domain::Services::IPlcManagerService::Reset ( boolean  async = false)
pure virtual

Resets the PLC and unloads its configuration.

Parameters
asynctrue, if the operation should be processed asynchronously, otherwise false.

◆ Start()

virtual void Arp::Plc::Domain::Services::IPlcManagerService::Start ( PlcStartKind  startKind,
boolean  async = false
)
pure virtual

Starts the PLC.

Parameters
startKindDetermines how the PLC should be started.
StartKindDescription
Arp.Plc.Domain.Services.PlcStartKind.ColdA cold start is processed. That is, all data is set to initial values.
Arp.Plc.Domain.Services.PlcStartKind.WarmA warm start is processed. That is, all data is set to initial values but retained data is set to the retained values.
Arp.Plc.Domain.Services.PlcStartKind.RestoreWarmA recover warm start is processed. That is, all data is set to initial values but retained data is set to the retained values from the prepared retain backup file.
Arp.Plc.Domain.Services.PlcStartKind.HotThe PLC is just continued without setting or resetting any data.
asynctrue, if the operation should be processed asynchronously, otherwise false.

If the actual state of the PLC is Arp.Plc.Domain.Services.PlcState.Ready, Arp.Plc.Domain.Services.PlcState.Running or Arp.Plc.Domain.Services.PlcState.Halt, the operation is ignored.

◆ Stop()

virtual void Arp::Plc::Domain::Services::IPlcManagerService::Stop ( boolean  async = false)
pure virtual

Stops the PLC.

Parameters
asynctrue, if the operation should be processed asynchronously, otherwise false.
