Arp::Io::ProfinetStack::Controller::Services::IArManagementService Class Reference

Use this service to manage PROFINET Application Relationships (AR) More...

#include <IArManagementService.hpp>

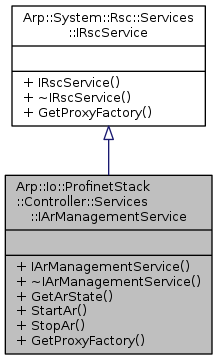

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::IArManagementService:

Public Types
typedef std::shared_ptr< IArManagementService >	Ptr
Public Types inherited from Arp::System::Rsc::Services::IRscService
typedef std::shared_ptr< IRscService >	Ptr

Public Member Functions
	IArManagementService (void)
	Constructs an IArManagementService instance. More...
virtual	~IArManagementService (void)
	Destructs this instance and frees all resouces. More...
virtual uint32	GetArState (const RscString< 512 > &stationName, uint32 &arState)=0
virtual uint32	StartAr (const RscString< 512 > &stationName, uint32 &arState)=0
virtual uint32	StopAr (const RscString< 512 > &stationName, uint32 &arState)=0
Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
	IRscService (void)=default
	Constructs an IRscService instance. More...
virtual	~IRscService (void)=default
	Destructs this instance and frees all resouces. More...

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)
Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of the service More...

Detailed Description

Use this service to manage PROFINET Application Relationships (AR)

Constructor & Destructor Documentation

IArManagementService()

Arp::Io::ProfinetStack::Controller::Services::IArManagementService::IArManagementService ( void  )

inline

Constructs an IArManagementService instance.

~IArManagementService()

Arp::Io::ProfinetStack::Controller::Services::IArManagementService::~IArManagementService ( void  )

inlinevirtual

Destructs this instance and frees all resouces.

Member Function Documentation

GetArState()

virtual uint32 Arp::Io::ProfinetStack::Controller::Services::IArManagementService::GetArState ( const RscString< 512 > &  stationName, uint32 &  arState  )

pure virtual

Parameters

stationName	Station name of the device
arState	Current state of the AR

Returns

Status of service

StartAr()

virtual uint32 Arp::Io::ProfinetStack::Controller::Services::IArManagementService::StartAr ( const RscString< 512 > &  stationName, uint32 &  arState  )

pure virtual

Parameters

stationName	Station name of the device
arState	State of the AR

ToDo

Returns

StopAr()

virtual uint32 Arp::Io::ProfinetStack::Controller::Services::IArManagementService::StopAr ( const RscString< 512 > &  stationName, uint32 &  arState  )

pure virtual

Parameters

stationName	Station name of the device
arState	State of the AR

ToDo

Returns

Status of service

---

The documentation for this class was generated from the following file:

• Arp/Io/ProfinetStack/Controller/Services/IArManagementService.hpp
