Data structure for notifications from the NotificationLogger More...

#include <StoredNotification.hpp>

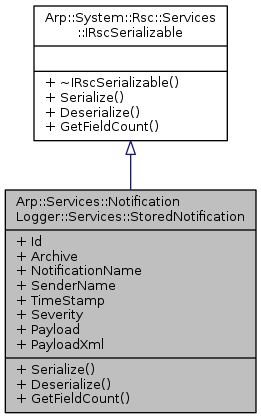

Inheritance diagram for Arp::Services::NotificationLogger::Services::StoredNotification:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor More...

Static Public Member Functions
static size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
uint64	Id = 0
	Id of the notification More...

RscString< 512 >	Archive
	name of the archive the notification was retreived from. If the same notification was stored in multiple archives this field contains a comma separated list of the archives More...

RscString< 512 >	NotificationName
	Name of the notification More...

RscString< 512 >	SenderName
	Nme of the sender More...

RscString< 512 >	TimeStamp
	timestamp when the notification was sent More...

RscString< 512 >	Severity
	Severity More...

std::vector< RscString< 512 > >	Payload
	Formatted payload More...

std::vector< RscString< 512 > >	PayloadXml
	Payload as XML More...

Detailed Description

Data structure for notifications from the NotificationLogger

Member Function Documentation

◆ Deserialize()

void Arp::Services::NotificationLogger::Services::StoredNotification::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

Implements Arp::System::Rsc::Services::IRscSerializable.

◆ Serialize()

void Arp::Services::NotificationLogger::Services::StoredNotification::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

Implements Arp::System::Rsc::Services::IRscSerializable.

Member Data Documentation

◆ Archive

RscString<512> Arp::Services::NotificationLogger::Services::StoredNotification::Archive

name of the archive the notification was retreived from. If the same notification was stored in multiple archives this field contains a comma separated list of the archives

◆ Id

uint64 Arp::Services::NotificationLogger::Services::StoredNotification::Id = 0

Id of the notification

◆ NotificationName

RscString<512> Arp::Services::NotificationLogger::Services::StoredNotification::NotificationName

Name of the notification

◆ Payload

std::vector<RscString<512> > Arp::Services::NotificationLogger::Services::StoredNotification::Payload

Formatted payload

◆ PayloadXml

std::vector<RscString<512> > Arp::Services::NotificationLogger::Services::StoredNotification::PayloadXml

Payload as XML

◆ SenderName

RscString<512> Arp::Services::NotificationLogger::Services::StoredNotification::SenderName

Nme of the sender

◆ Severity

RscString<512> Arp::Services::NotificationLogger::Services::StoredNotification::Severity

Severity

◆ TimeStamp

RscString<512> Arp::Services::NotificationLogger::Services::StoredNotification::TimeStamp

timestamp when the notification was sent

The documentation for this struct was generated from the following file:

Arp/Services/NotificationLogger/Services/StoredNotification.hpp
