Contains statistic values of one application relation More...

#include <ArStatisticValue.hpp>

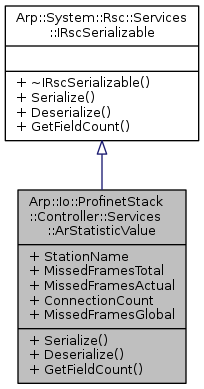

Inheritance diagram for Arp::Io::ProfinetStack::Controller::Services::ArStatisticValue:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor More...

Static Public Member Functions
static size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
RscString< 256 >	StationName
	Name of profinet device. More...

uint32	MissedFramesTotal = 0
	Count of missed frames of profinet device since start of controller or last Reset(). More...

uint32	MissedFramesActual = 0
	Count of missed frames since start of connection. This value is not reset by Reset(). More...

uint32	ConnectionCount = 0
	Count of reconnects since start of controller or last Reset(). More...

uint32	MissedFramesGlobal = 0
	Sum of missed frames of all configured Profinet devices. More...

Detailed Description

Contains statistic values of one application relation

Member Function Documentation

◆ Deserialize()

void Arp::Io::ProfinetStack::Controller::Services::ArStatisticValue::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

Implements Arp::System::Rsc::Services::IRscSerializable.

◆ Serialize()

void Arp::Io::ProfinetStack::Controller::Services::ArStatisticValue::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

Implements Arp::System::Rsc::Services::IRscSerializable.

Member Data Documentation

◆ ConnectionCount

uint32 Arp::Io::ProfinetStack::Controller::Services::ArStatisticValue::ConnectionCount = 0

Count of reconnects since start of controller or last Reset().

◆ MissedFramesActual

uint32 Arp::Io::ProfinetStack::Controller::Services::ArStatisticValue::MissedFramesActual = 0

Count of missed frames since start of connection. This value is not reset by Reset().

◆ MissedFramesGlobal

uint32 Arp::Io::ProfinetStack::Controller::Services::ArStatisticValue::MissedFramesGlobal = 0

Sum of missed frames of all configured Profinet devices.

◆ MissedFramesTotal

uint32 Arp::Io::ProfinetStack::Controller::Services::ArStatisticValue::MissedFramesTotal = 0

Count of missed frames of profinet device since start of controller or last Reset().

◆ StationName

RscString<256> Arp::Io::ProfinetStack::Controller::Services::ArStatisticValue::StationName

Name of profinet device.

The documentation for this struct was generated from the following file:

Arp/Io/ProfinetStack/Controller/Services/ArStatisticValue.hpp
