Service to send Notifications and query information about the NotificationManager More...

#include <INotificationManagerService.hpp>

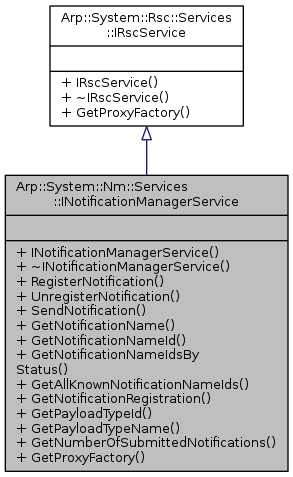

Inheritance diagram for Arp::System::Nm::Services::INotificationManagerService:

Public Types
typedef std::shared_ptr< INotificationManagerService >	Ptr

Public Types inherited from Arp::System::Rsc::Services::IRscService
typedef std::shared_ptr< IRscService >	Ptr

Public Member Functions
	INotificationManagerService (void)
	Constructs an INotificationManagerService instance. More...

virtual	~INotificationManagerService (void)
	Destructs this instance and frees all resouces. More...

virtual uint32	RegisterNotification (const RscString< 512 > &notificationName, const RscString< 512 > &senderName, Severity severity, const RscString< 512 > &payloadTypeName)=0
	Registers a new Notification More...

virtual void	UnregisterNotification (uint32 notificationNameId)=0
	Unregisters a Nototification More...

virtual uint64	SendNotification (uint32 notificationNameId, DateTime timestamp, const std::vector< RscVariant< 512 >> &payload)=0
	Sends a notification More...

virtual RscString< 512 >	GetNotificationName (uint32 notificationNameId)=0
	Queries the NotifictionName More...

virtual uint32	GetNotificationNameId (const RscString< 512 > &notificationName)=0
	Queries the id of an NotificationName More...

virtual std::vector< uint32 >	GetNotificationNameIdsByStatus (NotificationRegistrationStatus status)=0
	Queries the ids of Notifications with a given NotificationRegistrationStatus More...

virtual std::vector< uint32 >	GetAllKnownNotificationNameIds ()=0
	Queries of all known NotificationNameIds More...

virtual NotificationRegistrationInfo	GetNotificationRegistration (uint32 notificationNameId)=0
	Queries information about an Notification More...

virtual uint16	GetPayloadTypeId (const RscString< 512 > &payloadTypeName)=0
	Query an id for a given PayloadType More...

virtual RscString< 512 >	GetPayloadTypeName (uint16 payloadTypeId)=0
	Query the payload type name of a given id More...

virtual uint64	GetNumberOfSubmittedNotifications ()=0
	Returns the number of Notifications submitted since startup of the controller More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
	IRscService (void)=default
	Constructs an IRscService instance. More...

virtual	~IRscService (void)=default
	Destructs this instance and frees all resouces. More...

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of the service More...

Detailed Description

Service to send Notifications and query information about the NotificationManager

Constructor & Destructor Documentation

◆ INotificationManagerService()

Arp::System::Nm::Services::INotificationManagerService::INotificationManagerService ( void )

inline

Constructs an INotificationManagerService instance.

◆ ~INotificationManagerService()

Arp::System::Nm::Services::INotificationManagerService::~INotificationManagerService ( void )

inlinevirtual

Destructs this instance and frees all resouces.

Member Function Documentation

◆ GetAllKnownNotificationNameIds()

virtual std::vector<uint32> Arp::System::Nm::Services::INotificationManagerService::GetAllKnownNotificationNameIds ( )

pure virtual

Queries of all known NotificationNameIds

Returns: collection of all known NotificationNameIds

◆ GetNotificationName()

virtual RscString<512> Arp::System::Nm::Services::INotificationManagerService::GetNotificationName ( uint32 notificationNameId )

pure virtual

Queries the NotifictionName

Parameters

notificationNameId NotificationNameId

Returns: NotificationName

◆ GetNotificationNameId()

virtual uint32 Arp::System::Nm::Services::INotificationManagerService::GetNotificationNameId ( const RscString< 512 > & notificationName )

pure virtual

Queries the id of an NotificationName

Parameters

notificationName NotificationName

Returns: NotificationNameId

◆ GetNotificationNameIdsByStatus()

virtual std::vector<uint32> Arp::System::Nm::Services::INotificationManagerService::GetNotificationNameIdsByStatus ( NotificationRegistrationStatus status )

pure virtual

Queries the ids of Notifications with a given NotificationRegistrationStatus

Parameters

status status of the queried Notifications

Returns: collection of matching NotificationNameIds

◆ GetNotificationRegistration()

virtual NotificationRegistrationInfo Arp::System::Nm::Services::INotificationManagerService::GetNotificationRegistration ( uint32 notificationNameId )

pure virtual

Queries information about an Notification

Parameters

notificationNameId NotificationNameId

Returns: data structure to describe the Notification

◆ GetNumberOfSubmittedNotifications()

virtual uint64 Arp::System::Nm::Services::INotificationManagerService::GetNumberOfSubmittedNotifications ( )

pure virtual

Returns the number of Notifications submitted since startup of the controller

Returns: number of submitted notifications

◆ GetPayloadTypeId()

virtual uint16 Arp::System::Nm::Services::INotificationManagerService::GetPayloadTypeId ( const RscString< 512 > & payloadTypeName )

pure virtual

Query an id for a given PayloadType

Parameters

payloadTypeName Name fo the payload type

Returns: id of the payload type

◆ GetPayloadTypeName()

virtual RscString<512> Arp::System::Nm::Services::INotificationManagerService::GetPayloadTypeName ( uint16 payloadTypeId )

pure virtual

Query the payload type name of a given id

Parameters

payloadTypeId id of the payload type

Returns: name of the payload type

◆ RegisterNotification()

virtual uint32 Arp::System::Nm::Services::INotificationManagerService::RegisterNotification	(	const RscString< 512 > &	notificationName,
		const RscString< 512 > &	senderName,
		Severity	severity,
		const RscString< 512 > &	payloadTypeName
	)

pure virtual

Registers a new Notification

Parameters

notificationName	name of the notification (e.g. Arp.System.Nm.SomethingInterestingHappened)
senderName	name of the sender of the notification
severity	severity of the notification
payloadTypeName	name of the payload type

Returns: NotificationNameId, necessary for sending and unregistering

◆ SendNotification()

virtual uint64 Arp::System::Nm::Services::INotificationManagerService::SendNotification	(	uint32	notificationNameId,
		DateTime	timestamp,
		const std::vector< RscVariant< 512 >> &	payload
	)

pure virtual

Sends a notification

Parameters

notificationNameId	id of the NotificationName to send
timestamp	Current timestamp
payload	payload to send

Returns: NotificationId

◆ UnregisterNotification()

virtual void Arp::System::Nm::Services::INotificationManagerService::UnregisterNotification ( uint32 notificationNameId )

pure virtual

Unregisters a Nototification

Parameters

notificationNameId id of the NotificationName to unregister

The documentation for this class was generated from the following file:

Arp/System/Nm/Services/INotificationManagerService.hpp
