Payload class for changes of the link state of an Ethernet port More...
#include <EthernetLinkStatePayload.hpp>

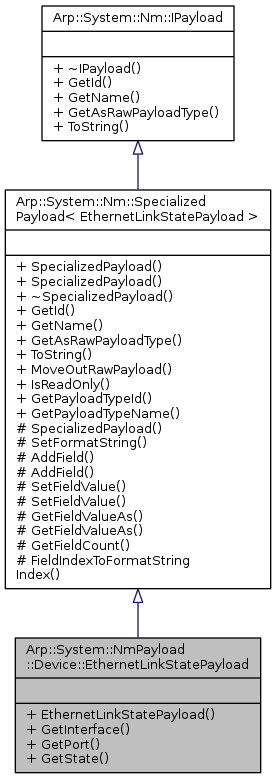

Inheritance diagram for Arp::System::NmPayload::Device::EthernetLinkStatePayload:
Public Member Functions | |
| EthernetLinkStatePayload (uint32 interface, uint32 port, EthernetLinkState state) | |
| Creates a payload object More... | |
| uint32 | GetInterface () const |
| Returns the id of interface More... | |
| uint32 | GetPort () const |
| Returns the id of the port More... | |
| EthernetLinkState | GetState () const |
| Returns the state of the interface More... | |
 Public Member Functions inherited from Arp::System::Nm::SpecializedPayload< EthernetLinkStatePayload > | |
| SpecializedPayload (const Notification ¬ification) | |
| Creates a view on a Notification object More... | |
| SpecializedPayload (const GenericPayload &payloadArg) | |
| Creates a view on a GenericPayload object More... | |
| PayloadTypeIdType | GetId () const final |
| Returns the PayloadTypeId More... | |
| const String | GetName () const final |
| Returns the PayloadTypeName More... | |
| const RawPayloadType & | GetAsRawPayloadType () const final |
| Returns a reference to the raw payload object More... | |
| const String | ToString () const override |
| Get a human readable string representation More... | |
| RawPayloadType && | MoveOutRawPayload () |
| bool | IsReadOnly () const |
| Returns true if this object is a view on a Payload More... | |
Additional Inherited Members | |
| Public Types inherited from Arp::System::Nm::SpecializedPayload< EthernetLinkStatePayload > | |
| using | ValueType = RawPayloadType::value_type |
| using | FieldType = Arp::System::Rsc::Services::RscType |
| Static Public Member Functions inherited from Arp::System::Nm::SpecializedPayload< EthernetLinkStatePayload > | |
| static PayloadTypeIdType | GetPayloadTypeId () |
| Returns the PayloadTypeId More... | |
| static const String | GetPayloadTypeName () |
| Returns the PayloadType name More... | |
| Protected Member Functions inherited from Arp::System::Nm::SpecializedPayload< EthernetLinkStatePayload > | |
| SpecializedPayload (const String &formatString) | |
| Creates a SpecializedPayload with an format string More... | |
| void | SetFormatString (const String &formatString) |
| summary>Retuns the index in the format string for a given payload field More... | |
| size_t | AddField () |
| Adds a payload field More... | |
| size_t | AddField () |
| Adds a payload field More... | |
| void | SetFieldValue (size_t fieldIndex, const T &value) |
| Sets the value of a payload field More... | |
| void | SetFieldValue (size_t fieldIndex, T value) |
| Sets the value of a payload field More... | |
| const T | GetFieldValueAs (size_t fieldIndex) const |
| Gets a field value with the specified type More... | |
| const T | GetFieldValueAs (size_t fieldIndex) const |
| Gets a field value with the specified type More... | |
| size_t | GetFieldCount () const |
| Gets the number of fields in the payload More... | |
| Static Protected Member Functions inherited from Arp::System::Nm::SpecializedPayload< EthernetLinkStatePayload > | |
| static size_t | FieldIndexToFormatStringIndex (size_t fieldIndex) |
Detailed Description
Payload class for changes of the link state of an Ethernet port
This class is used by the device interface to notify of link state changes.
Constructor & Destructor Documentation
◆ EthernetLinkStatePayload()
| Arp::System::NmPayload::Device::EthernetLinkStatePayload::EthernetLinkStatePayload | ( | uint32 | interface, |
| uint32 | port, | ||
| EthernetLinkState | state | ||
| ) |
Creates a payload object
- Parameters
-
interface id of the interface port id of the port state state of the interface (Up, Down)
Member Function Documentation
◆ GetInterface()
| uint32 Arp::System::NmPayload::Device::EthernetLinkStatePayload::GetInterface | ( | ) | const |
Returns the id of interface
◆ GetPort()
| uint32 Arp::System::NmPayload::Device::EthernetLinkStatePayload::GetPort | ( | ) | const |
Returns the id of the port
◆ GetState()
| EthernetLinkState Arp::System::NmPayload::Device::EthernetLinkStatePayload::GetState | ( | ) | const |
Returns the state of the interface
The documentation for this class was generated from the following file:
- Arp/System/NmPayload/Device/EthernetLinkStatePayload.hpp
