Class to handle x.509 certificates More...

#include <Certificate.hpp>

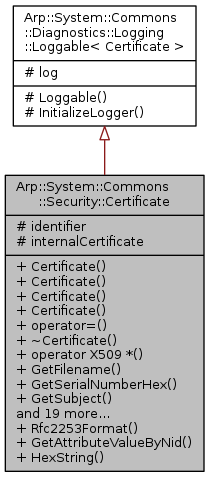

Inheritance diagram for Arp::System::Commons::Security::Certificate:

Public Member Functions
	Certificate (void)
	Constructs an empty Certificate instance to be loaded from file or memory. More...

	Certificate (const String &filename)
	Constructs an Certificate instance load from a file More...

	Certificate (const std::vector< byte > &pemOrDerEncoding)
	Constructs an Certificate instance load from memory More...

	Certificate (const Certificate &arg)
	Copy constructor. More...

virtual Certificate &	operator= (const Certificate &arg)
	Assignment operator. More...

virtual	~Certificate (void)
	Destructs this instance and frees all resources. More...

	operator X509 * () const
	implicit conversion operator to openssl X509* More...

const String &	GetFilename (void) const
	returns the filename were this x.509 certificate was loaded from More...

String	GetSerialNumberHex (void) const
	returns the filename were this x.509 certificate was loaded from More...

String	GetSubject (void) const
	returns the subject of the x.509 certificate as string (rfc2253 formatted) More...

String	GetSubjectCommonName (void) const
	returns the common name of the subject More...

String	GetSubjectSerialNumber (void) const
	return the serialnumber of the subject as string More...

String	GetIssuer (void) const
	returns the issuer of the x.509 certificate as string (rfc2253 formatted) More...

String	GetIssuerCommonName (void) const
	returns the common name of the issuer More...

const String &	GetIdentifier (void) const
	returns an unique identifier for this certificate as string (sha256 hash of the x.509 certificate) More...

DateTime	GetValidityNotBefore (void) const
	returns the notBefore field of the x.509 as DateTime object More...

Asn1Time	GetValidityNotBeforeAsn1 (void) const
	returns the notBefore field of the x.509 as Asn1Time object More...

DateTime	GetValidityNotAfter (void) const
	returns the notAfter field of the x.509 as DateTime object More...

Asn1Time	GetValidityNotAfterAsn1 (void) const
	returns the notAfter field of the x.509 as Asn1Time object More...

std::vector< byte >	GetPemData (void) const
	returns the certificate encoded in PEM format More...

std::vector< byte >	GetDerData (void) const
	returns the certificate encoded in DER format More...

ItemInfo	GetItemInfo (void) const
	returns ItemInfo for the Certificate More...

void	LoadFromFile (const String &filename)
	loads the certificate from a file. File can be PEM or DER encoded More...

int	LoadFromMemory (const std::vector< byte > &data, int offset=0)
	loads the certificate from memory. byte vector can be PEM or DER encoded More...

bool	TryLoadFromMemory (const std::vector< byte > &data, int &offset)
	tries to load the certificate from memory. byte vector can be PEM or DER encoded More...

bool	TryLoadFromBio (OpenSslBio &bio, int &offset)
	tries to load the certificate from OpenSslBio. More...

void	SaveToFilePem (const String &filename) const
	saves the certificate in PEM format to filename More...

void	AppendToFilePem (const String &filename) const
	appends the certificate in PEM format to filename More...

void	SaveToFileDer (const String &filename) const
	saves the certificate in DER format to filename More...

Static Public Member Functions
static String	Rfc2253Format (X509_NAME *name)
	static function to convert an openssl X509_NAME to an rfc2253 string More...

static String	GetAttributeValueByNid (X509_NAME *name, int nid)
	static function to extract an attribute value out of an openssl X509_NAME object identified by NID More...

static String	HexString (ASN1_INTEGER *integer)
	static function convert an openssl ASN1_INTEGER to hexadecimal String representation More...

Protected Attributes
String	identifier

X509 *	internalCertificate

Detailed Description

Class to handle x.509 certificates

Constructor & Destructor Documentation

◆ Certificate() [1/4]

Arp::System::Commons::Security::Certificate::Certificate ( void )

Constructs an empty Certificate instance to be loaded from file or memory.

◆ Certificate() [2/4]

Arp::System::Commons::Security::Certificate::Certificate ( const String & filename )

Constructs an Certificate instance load from a file

◆ Certificate() [3/4]

Arp::System::Commons::Security::Certificate::Certificate ( const std::vector< byte > & pemOrDerEncoding )

Constructs an Certificate instance load from memory

◆ Certificate() [4/4]

Arp::System::Commons::Security::Certificate::Certificate ( const Certificate & arg )

Copy constructor.

◆ ~Certificate()

virtual Arp::System::Commons::Security::Certificate::~Certificate ( void )

virtual

Destructs this instance and frees all resources.

Member Function Documentation

◆ AppendToFilePem()

void Arp::System::Commons::Security::Certificate::AppendToFilePem ( const String & filename ) const

appends the certificate in PEM format to filename

◆ GetAttributeValueByNid()

static String Arp::System::Commons::Security::Certificate::GetAttributeValueByNid	(	X509_NAME *	name,
		int	nid
	)

static

static function to extract an attribute value out of an openssl X509_NAME object identified by NID

Parameters

name	pointer to the openssl X509_NAME object where the attribute value should be extracted from
nid	nid of the attribute which should be extracted

Returns: extracted attribute as string

◆ GetDerData()

std::vector<byte> Arp::System::Commons::Security::Certificate::GetDerData ( void ) const

returns the certificate encoded in DER format

◆ GetFilename()

const String & Arp::System::Commons::Security::Certificate::GetFilename ( void ) const

inline

returns the filename were this x.509 certificate was loaded from

Returns: the filename were this x.509 certificate was loaded from

◆ GetIdentifier()

const String& Arp::System::Commons::Security::Certificate::GetIdentifier ( void ) const

returns an unique identifier for this certificate as string (sha256 hash of the x.509 certificate)

◆ GetIssuer()

String Arp::System::Commons::Security::Certificate::GetIssuer ( void ) const

returns the issuer of the x.509 certificate as string (rfc2253 formatted)

◆ GetIssuerCommonName()

String Arp::System::Commons::Security::Certificate::GetIssuerCommonName ( void ) const

returns the common name of the issuer

◆ GetItemInfo()

ItemInfo Arp::System::Commons::Security::Certificate::GetItemInfo ( void ) const

returns ItemInfo for the Certificate

◆ GetPemData()

std::vector<byte> Arp::System::Commons::Security::Certificate::GetPemData ( void ) const

returns the certificate encoded in PEM format

◆ GetSerialNumberHex()

String Arp::System::Commons::Security::Certificate::GetSerialNumberHex ( void ) const

returns the filename were this x.509 certificate was loaded from

◆ GetSubject()

String Arp::System::Commons::Security::Certificate::GetSubject ( void ) const

returns the subject of the x.509 certificate as string (rfc2253 formatted)

◆ GetSubjectCommonName()

String Arp::System::Commons::Security::Certificate::GetSubjectCommonName ( void ) const

returns the common name of the subject

◆ GetSubjectSerialNumber()

String Arp::System::Commons::Security::Certificate::GetSubjectSerialNumber ( void ) const

return the serialnumber of the subject as string

◆ GetValidityNotAfter()

DateTime Arp::System::Commons::Security::Certificate::GetValidityNotAfter ( void ) const

returns the notAfter field of the x.509 as DateTime object

◆ GetValidityNotAfterAsn1()

Asn1Time Arp::System::Commons::Security::Certificate::GetValidityNotAfterAsn1 ( void ) const

returns the notAfter field of the x.509 as Asn1Time object

◆ GetValidityNotBefore()

DateTime Arp::System::Commons::Security::Certificate::GetValidityNotBefore ( void ) const

returns the notBefore field of the x.509 as DateTime object

◆ GetValidityNotBeforeAsn1()

Asn1Time Arp::System::Commons::Security::Certificate::GetValidityNotBeforeAsn1 ( void ) const

returns the notBefore field of the x.509 as Asn1Time object

◆ HexString()

static String Arp::System::Commons::Security::Certificate::HexString ( ASN1_INTEGER * integer )

static

static function convert an openssl ASN1_INTEGER to hexadecimal String representation

Parameters

integer pointer to the openssl ASN1_INTEGER object which should be converted to hexadecimal string representation

Returns: the hexadecimal representation of integer as String

◆ LoadFromFile()

void Arp::System::Commons::Security::Certificate::LoadFromFile ( const String & filename )

loads the certificate from a file. File can be PEM or DER encoded

◆ LoadFromMemory()

int Arp::System::Commons::Security::Certificate::LoadFromMemory	(	const std::vector< byte > &	data,
		int	offset = `0`
	)

loads the certificate from memory. byte vector can be PEM or DER encoded

◆ operator X509 *()

Arp::System::Commons::Security::Certificate::operator X509 * ( ) const

inline

implicit conversion operator to openssl X509*

◆ operator=()

virtual Certificate& Arp::System::Commons::Security::Certificate::operator= ( const Certificate & arg )

virtual

Assignment operator.

◆ Rfc2253Format()

static String Arp::System::Commons::Security::Certificate::Rfc2253Format ( X509_NAME * name )

static

static function to convert an openssl X509_NAME to an rfc2253 string

◆ SaveToFileDer()

void Arp::System::Commons::Security::Certificate::SaveToFileDer ( const String & filename ) const

saves the certificate in DER format to filename

◆ SaveToFilePem()

void Arp::System::Commons::Security::Certificate::SaveToFilePem ( const String & filename ) const

saves the certificate in PEM format to filename

◆ TryLoadFromBio()

bool Arp::System::Commons::Security::Certificate::TryLoadFromBio	(	OpenSslBio &	bio,
		int &	offset
	)

tries to load the certificate from OpenSslBio.

Returns: true if the certificate could be loaded false if the certificate could not be loaded

◆ TryLoadFromMemory()

bool Arp::System::Commons::Security::Certificate::TryLoadFromMemory	(	const std::vector< byte > &	data,
		int &	offset
	)

tries to load the certificate from memory. byte vector can be PEM or DER encoded

Returns: true if the certificate could be loaded false if the certificate could not be loaded

The documentation for this class was generated from the following file:

Arp/System/Commons/Security/Certificate.hpp
