Arp::Plc::Domain::Services::IPlcManagerService2 Class Reference

The DownloadChange extension of the Arp.Plc.Domain.Services.IPlcManagerService. More...

#include <IPlcManagerService2.hpp>

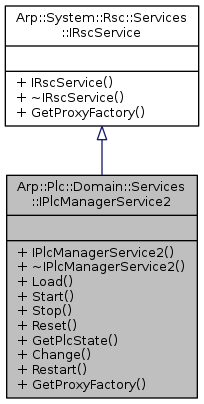

Inheritance diagram for Arp::Plc::Domain::Services::IPlcManagerService2:

Public Types
typedef std::shared_ptr< IPlcManagerService2 >	Ptr
Public Types inherited from Arp::System::Rsc::Services::IRscService
typedef std::shared_ptr< IRscService >	Ptr

Public Member Functions
	IPlcManagerService2 (void)
	Constructs an IPlcManagerService2 instance. More...
virtual	~IPlcManagerService2 (void)
	Destructs this instance and frees all resouces. More...
virtual void	Load (boolean async=false)=0
virtual void	Start (PlcStartKind startKind, boolean async=false)=0
virtual void	Stop (boolean async=false)=0
virtual void	Reset (boolean async=false)=0
virtual PlcState	GetPlcState ()=0
virtual void	Change (boolean async=false)=0
	This operation will perform the change of the PLC configuration, which was downloaded before. More...
virtual void	Restart (PlcStartKind startKind, boolean async=false)=0
	Restarts the Plc, that is, it's stopped and started in a single operation. More...
Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
	IRscService (void)=default
	Constructs an IRscService instance. More...
virtual	~IRscService (void)=default
	Destructs this instance and frees all resouces. More...

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)
Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of the service More...

Detailed Description

The DownloadChange extension of the Arp.Plc.Domain.Services.IPlcManagerService.

Constructor & Destructor Documentation

IPlcManagerService2()

Arp::Plc::Domain::Services::IPlcManagerService2::IPlcManagerService2 ( void  )

inline

Constructs an IPlcManagerService2 instance.

~IPlcManagerService2()

Arp::Plc::Domain::Services::IPlcManagerService2::~IPlcManagerService2 ( void  )

inlinevirtual

Destructs this instance and frees all resouces.

Member Function Documentation

Change()

virtual void Arp::Plc::Domain::Services::IPlcManagerService2::Change ( boolean  async = false )

pure virtual

This operation will perform the change of the PLC configuration, which was downloaded before.

Parameters

async

true, if the operation should be processed asynchronously, otherwise false.

Restart()

virtual void Arp::Plc::Domain::Services::IPlcManagerService2::Restart ( PlcStartKind  startKind, boolean  async = false  )

pure virtual

Restarts the Plc, that is, it's stopped and started in a single operation.

Parameters

startKind	The start kind Arp.Plc.Domain.Services.PlcStartKind.Cold, Arp.Plc.Domain.Services.PlcStartKind.Warm of Arp.Plc.Domain.Services.PlcStartKind.Hot
async	true, if the operation should be processed asynchronously, otherwise false.

---

The documentation for this class was generated from the following file:

• Arp/Plc/Domain/Services/IPlcManagerService2.hpp
