Arp::Plc::Domain::Services::IPlcInfoService Class Reference

Provides informations about the Plc (realtime) project. More...

#include <IPlcInfoService.hpp>

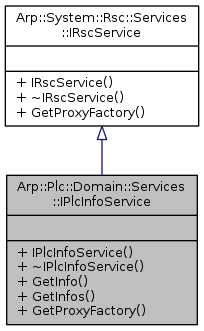

Inheritance diagram for Arp::Plc::Domain::Services::IPlcInfoService:

Public Types
typedef std::shared_ptr< IPlcInfoService >	Ptr
Public Types inherited from Arp::System::Rsc::Services::IRscService
typedef std::shared_ptr< IRscService >	Ptr

Public Member Functions
	IPlcInfoService (void)
	Constructs an IPlcInfoService instance. More...
virtual	~IPlcInfoService (void)
	Destructs this instance and frees all resouces. More...
virtual RscVariant< 256 >	GetInfo (PlcInfoId identifier)=0
	Gets the specified info from the Plc project. More...
virtual std::vector< RscVariant< 256 > >	GetInfos (const std::vector< PlcInfoId > &identifiers)=0
	Gets the specified infos from the Plc project. More...
Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
	IRscService (void)=default
	Constructs an IRscService instance. More...
virtual	~IRscService (void)=default
	Destructs this instance and frees all resouces. More...

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)
Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of the service More...

Detailed Description

Provides informations about the Plc (realtime) project.

Constructor & Destructor Documentation

IPlcInfoService()

Arp::Plc::Domain::Services::IPlcInfoService::IPlcInfoService ( void  )

inline

Constructs an IPlcInfoService instance.

~IPlcInfoService()

Arp::Plc::Domain::Services::IPlcInfoService::~IPlcInfoService ( void  )

inlinevirtual

Destructs this instance and frees all resouces.

Member Function Documentation

GetInfo()

virtual RscVariant<256> Arp::Plc::Domain::Services::IPlcInfoService::GetInfo ( PlcInfoId  identifier )

pure virtual

Gets the specified info from the Plc project.

Parameters

identifier

The identifier of the info to read.

Returns

The requested info or null if the identifier is unknown.

GetInfos()

virtual std::vector<RscVariant<256> > Arp::Plc::Domain::Services::IPlcInfoService::GetInfos ( const std::vector< PlcInfoId > &  identifiers )

pure virtual

Gets the specified infos from the Plc project.

Parameters

identifiers

The identifiers of the infos to read.

Returns

The requested infos as array. If an identifiers is unknown, the according array element is null.

---

The documentation for this class was generated from the following file:

• Arp/Plc/Domain/Services/IPlcInfoService.hpp
