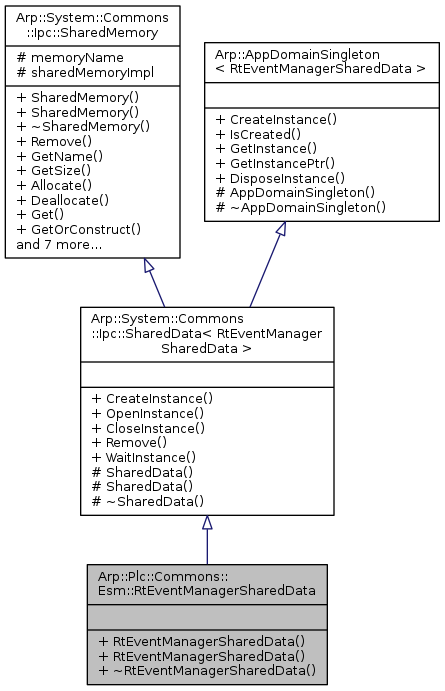

Inheritance diagram for Arp::Plc::Commons::Esm::RtEventManagerSharedData:
Public Member Functions | |
| RtEventManagerSharedData (size_t memorySize) | |
 Public Member Functions inherited from Arp::System::Commons::Ipc::SharedMemory | |
| SharedMemory (const char *name) | |
| Opens an existing shared memory. More... | |
| SharedMemory (const char *name, size_t memorySize) | |
| Creates an non-existing instance, throws if yet exists. More... | |
| ~SharedMemory (void)=default | |
| Deallocates the memory for this management object but not the memory shared between processes. More... | |
| void | Remove (void) |
| Removes the shared memory from the system. More... | |
| const Arp::String & | GetName (void) const |
| Returns the name of the memory object. More... | |
| size_t | GetSize (void) const |
| Returns the capacity of the shared memory in bytes. More... | |
| byte * | Allocate (size_t size) |
Tries to allocate size amount of bytes in the memory. More... | |
| void | Deallocate (byte *pMemory) |
Marks the memory pointed to by pMemory available for new allocation requests. More... | |
| template<class T > | |
| Ptr< T > | Get (const char *name) |
| Tries to find a previously allocated named object. More... | |
| template<class T , typename ... TArgs> | |
| Ptr< T > | GetOrConstruct (const char *name, TArgs... args) |
Tries to find object identified by name, creates a new one if the object does not exists yet. More... | |
| template<class T , typename ... TArgs> | |
| Ptr< T > | Construct (const char *name, TArgs... args) |
| Creates a named object in the shared memory. More... | |
| template<class T , typename ... TArgs> | |
| Ptr< T > | ConstructUnnamed (TArgs... args) |
| Creates an unnamed object in the shared memory. More... | |
| template<class T > | |
| void | Destroy (const char *name) |
| Deallocates the object in the shared memory, also calling the objects destructor. More... | |
| size_t | GetFreeMemory (void) const |
| Obtain the number of free bytes in the shared memory. More... | |
| void | ZeroFreeMemory (void) |
| Writes zero in all bytes not yet allocated. More... | |
| bool | AllMemoryDeallocated (void) |
| Checks if all memory has been deallocated. More... | |
| bool | CheckSanity (void) |
| Performs a sanity check over the shared memory. More... | |
Additional Inherited Members | |
| Public Types inherited from Arp::System::Commons::Ipc::SharedData< RtEventManagerSharedData > | |
| typedef SharedMemory | Base |
| typedef RtEventManagerSharedData | DerivedType |
| typedef AppDomainSingleton< RtEventManagerSharedData > | SingletonBase |
| typedef boost::interprocess::managed_shared_memory | SharedMemory |
| typedef SharedMemory::segment_manager | SegmentManager |
| typedef boost::interprocess::permissions | SharedMemoryPermission |
| using | Ptr = boost::interprocess::offset_ptr< T > |
| using | ConstPtr = boost::interprocess::offset_ptr< const T > |
| typedef boost::interprocess::basic_string< char, std::char_traits< char >, Allocator< char > > | String |
| using | vector = boost::interprocess::vector< T, Allocator< T > > |
| using | list = boost::interprocess::list< T, Allocator< T > > |
| using | map = boost::interprocess::map< TKey, TValue, TCompare, Allocator< std::pair< const TKey, TValue > >> |
| using | set = boost::interprocess::set< TKey, TCompare, Allocator< TKey > > |
| Public Types inherited from Arp::System::Commons::Ipc::SharedMemory | |
| typedef boost::interprocess::managed_shared_memory | SharedMemoryImpl |
| typedef SharedMemoryImpl::segment_manager | SegmentManager |
| typedef boost::interprocess::permissions | SharedMemoryPermission |
| template<class T > | |
| using | Ptr = boost::interprocess::offset_ptr< T > |
| Returned pointer types are shared memory based offset pointer. More... | |
| Static Public Member Functions inherited from Arp::System::Commons::Ipc::SharedData< RtEventManagerSharedData > | |
| static ARP_CXX_SYMBOL_EXPORT void | CreateInstance (size_t memorySize) |
| static void | OpenInstance (void) |
| static void | CloseInstance (bool removeMemory=false) |
| static void | Remove (void) |
| static void | WaitInstance (const char *waitMessage, uint32 timeout=-1) |
| Static Public Member Functions inherited from Arp::AppDomainSingleton< RtEventManagerSharedData > | |
| static RtEventManagerSharedData & | CreateInstance (Args &&... args) |
| Creates this singleton instance. More... | |
| static bool | IsCreated (void) |
| Determines if this singleton instance is created yet. More... | |
| static RtEventManagerSharedData & | GetInstance (void) |
| Gets a reference of the singleton instance. More... | |
| static RtEventManagerSharedData * | GetInstancePtr (void) |
| Gets a pointer to the singleton instance. More... | |
| static void | DisposeInstance (void) |
| Disposes this singleton instance. More... | |
| Protected Types inherited from Arp::AppDomainSingleton< RtEventManagerSharedData > | |
| typedef AppDomainSingleton< RtEventManagerSharedData > | SingletonBase |
| Defines this type to be used from derived classes. More... | |
| Protected Member Functions inherited from Arp::System::Commons::Ipc::SharedData< RtEventManagerSharedData > | |
| SharedData (size_t memorySize) | |
| Protected Member Functions inherited from Arp::AppDomainSingleton< RtEventManagerSharedData > | |
| AppDomainSingleton (void)=default | |
| The protected default constructor. More... | |
| ~AppDomainSingleton (void)=default | |
| The protected default destructor. More... | |
| Protected Attributes inherited from Arp::System::Commons::Ipc::SharedMemory | |
| Arp::String | memoryName |
| Name of memory identifying the shared memory inside the operating system. More... | |
| SharedMemoryImpl | sharedMemoryImpl |
| Actual implementation of the shared memory functionality. More... | |
The documentation for this class was generated from the following file:
- Arp/Plc/Commons/Esm/RtEventManagerSharedData.hpp
