Arp::Plc::Commons::Esm::RtEvent Class Reference

This class implements a ipc event for the bidirectional exchange of realtime events. More...

#include <RtEvent.hpp>

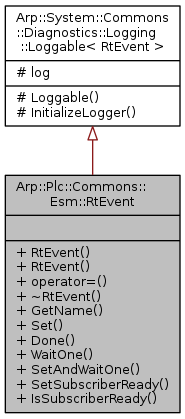

Inheritance diagram for Arp::Plc::Commons::Esm::RtEvent:

Public Types
typedef RtEventManagerSharedData::Ptr< RtEvent >	Ptr
	Shared pointer type of RtEvent. More...

Public Member Functions
	RtEvent (const String &nameArg)
	Constructs an RtEvent instance. More...
	RtEvent (const RtEvent &arg)=delete
	Copy constructor. More...
RtEvent &	operator= (const RtEvent &arg)=delete
	Assignment operator. More...
	~RtEvent (void)=default
	Destructs this instance and frees all resources. More...
String	GetName ()
	Returns name identifier of the event. More...
void	Set (void)
	Signals the event. More...
void	Done (void)
	Signals that the event was processed. More...
bool	WaitOne (unsigned long timeoutArg=0, bool setSubscriberReadyArg=true)
	Waits blocking on signal of the event. More...
bool	SetAndWaitOne (unsigned long timeoutArg=0)
	Fires the event and waits blocking on that the event has been processed. More...
void	SetSubscriberReady (bool isSubscriberReadyArg=true)
	Sets the state of the event subscriber. More...
bool	IsSubscriberReady (void)
	Returns state of the event subscriber. More...

Detailed Description

This class implements a ipc event for the bidirectional exchange of realtime events.

Member Typedef Documentation

Ptr

typedef RtEventManagerSharedData::Ptr<RtEvent> Arp::Plc::Commons::Esm::RtEvent::Ptr

Shared pointer type of RtEvent.

Constructor & Destructor Documentation

RtEvent() [1/2]

Arp::Plc::Commons::Esm::RtEvent::RtEvent

(

const String &

nameArg

)

Constructs an RtEvent instance.

RtEvent() [2/2]

Arp::Plc::Commons::Esm::RtEvent::RtEvent ( const RtEvent &  arg )

delete

Copy constructor.

~RtEvent()

Arp::Plc::Commons::Esm::RtEvent::~RtEvent ( void  )

default

Destructs this instance and frees all resources.

Member Function Documentation

Done()

void Arp::Plc::Commons::Esm::RtEvent::Done

(

void

)

Signals that the event was processed.

GetName()

String Arp::Plc::Commons::Esm::RtEvent::GetName ( )

inline

Returns name identifier of the event.

Returns

The name identifier of the event.

IsSubscriberReady()

bool Arp::Plc::Commons::Esm::RtEvent::IsSubscriberReady ( void  )

inline

Returns state of the event subscriber.

Returns

The state of the event subscriber. "true" marks the event subscriber is ready.

operator=()

RtEvent& Arp::Plc::Commons::Esm::RtEvent::operator= ( const RtEvent &  arg )

delete

Assignment operator.

Set()

void Arp::Plc::Commons::Esm::RtEvent::Set

(

void

)

Signals the event.

SetAndWaitOne()

bool Arp::Plc::Commons::Esm::RtEvent::SetAndWaitOne

(

unsigned long

timeoutArg = 0

)

Fires the event and waits blocking on that the event has been processed.

Parameters

timeoutArg	Timeout in milliseconds to wait for the event to become processed. If the value is set to 0 (default) the calling thread will wait infinitly or until the event is set.
setSubscriberReadyArg	If the parameter true, the method sets the subscriber ready implicit. Default is this parameter true.

Returns

Returns false is the timeout was reached before the event was processed, otherwise true is returned.

SetSubscriberReady()

void Arp::Plc::Commons::Esm::RtEvent::SetSubscriberReady ( bool  isSubscriberReadyArg = true )

inline

Sets the state of the event subscriber.

Parameters

isSubscriberReadyArg

The state of the event subscriber. "true" marks the event subscriber is ready.

WaitOne()

bool Arp::Plc::Commons::Esm::RtEvent::WaitOne	(	unsigned long	timeoutArg = 0,
		bool	setSubscriberReadyArg = true
	)

Waits blocking on signal of the event.

Parameters

timeoutArg

Timeout in milliseconds to wait for the event to become signaled. If the value is set to 0 (default) the calling thread will wait infinitly or until the event is set.

Returns

Returns false is the timeout was reached before the event was signaled, otherwise true is returned.

---

The documentation for this class was generated from the following file:

• Arp/Plc/Commons/Esm/RtEvent.hpp
