Arp::Plc::Commons::Esm::IProgramComponent Class Reference

Interface to realizes an access to a plc program provider. More...

#include <IProgramComponent.hpp>

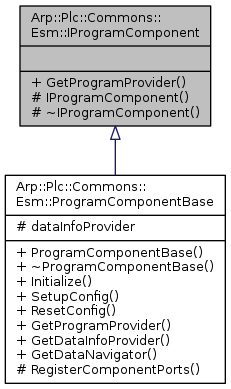

Inheritance diagram for Arp::Plc::Commons::Esm::IProgramComponent:

Public Types
typedef std::shared_ptr< IProgramComponent >	Ptr
	Shared pointer type of IProgramComponent. More...

Public Member Functions
virtual IProgramProvider &	GetProgramProvider (bool useBackgroundDomain)=0
	Returns the program provider of this component. More...

Protected Member Functions
	IProgramComponent (void)=default
	Constructs an IProgramComponent instance. More...
virtual	~IProgramComponent (void)=default
	Destructs this instance and frees all resouces. More...

Detailed Description

Interface to realizes an access to a plc program provider.

Instances of this class can be used to get an access to a plc program provider.

Member Typedef Documentation

Ptr

typedef std::shared_ptr<IProgramComponent> Arp::Plc::Commons::Esm::IProgramComponent::Ptr

Shared pointer type of IProgramComponent.

Constructor & Destructor Documentation

IProgramComponent()

Arp::Plc::Commons::Esm::IProgramComponent::IProgramComponent ( void  )

protecteddefault

Constructs an IProgramComponent instance.

~IProgramComponent()

virtual Arp::Plc::Commons::Esm::IProgramComponent::~IProgramComponent ( void  )

protectedvirtualdefault

Destructs this instance and frees all resouces.

Member Function Documentation

GetProgramProvider()

virtual IProgramProvider& Arp::Plc::Commons::Esm::IProgramComponent::GetProgramProvider ( bool  useBackgroundDomain )

pure virtual

Returns the program provider of this component.

Returns

The program provider of this component.

Implemented in Arp::Plc::Commons::Esm::ProgramComponentBase.

---

The documentation for this class was generated from the following file:

• Arp/Plc/Commons/Esm/IProgramComponent.hpp
