Arp::Io::Interbus::Services::IInterbusMasterService Class Referenceabstract

Provides the access to the Interbus master More...

#include <IInterbusMasterService.hpp>

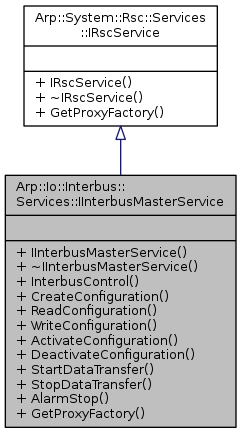

Inheritance diagram for Arp::Io::Interbus::Services::IInterbusMasterService:
Inheritance graph

Public Types

typedef std::shared_ptr< IInterbusMasterServicePtr

- Public Types inherited from Arp::System::Rsc::Services::IRscService
typedef std::shared_ptr< IRscServicePtr


Public Member Functions

 IInterbusMasterService (void)
 Constructs an IInterbusMasterService instance. More...

virtual ~IInterbusMasterService (void)
 Destructs this instance and frees all resouces. More...

virtual uint16 InterbusControl (const std::vector< uint16 > &inData, std::vector< uint16 > &outData)=0
 Raw Interbus service to communicate with the AXIO master. More...

virtual InterbusResult CreateConfiguration (uint16 frameReference)=0
 Automatic creation of a new configuration More...

virtual InterbusResult ReadConfiguration (std::vector< DeviceConfiguration > &configuration)=0
 Read current configuration More...

virtual InterbusResult WriteConfiguration (uint16 frameReference, const std::vector< DeviceConfiguration > &configuration)=0
 Write configuration More...

virtual InterbusResult ActivateConfiguration (uint16 frameReference)=0
 Activate configuration More...

virtual InterbusResult DeactivateConfiguration (uint16 frameReference)=0
 Deactivate configuration More...

virtual InterbusResult StartDataTransfer ()=0
 Start cyclic data transfer More...

virtual InterbusResult StopDataTransfer ()=0
 Stop cyclic data transfer More...

virtual InterbusResult AlarmStop ()=0
 Trigger a long reset More...

- Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
 IRscService (void)=default
 Constructs an IRscService instance. More...

virtual ~IRscService (void)=default
 Destructs this instance and frees all resouces. More...


Static Public Member Functions

static IRscServiceProxyFactory & GetProxyFactory (void)

- Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
static IRscServiceProxyFactory & GetProxyFactory (void)
 Returns a reference to service proxy factory to create a proxy instance of the service More...


Detailed Description

Provides the access to the Interbus master

Constructor & Destructor Documentation

◆ IInterbusMasterService()

Arp::Io::Interbus::Services::IInterbusMasterService::IInterbusMasterService ( void  )
inline

Constructs an IInterbusMasterService instance.

◆ ~IInterbusMasterService()

Arp::Io::Interbus::Services::IInterbusMasterService::~IInterbusMasterService ( void  )
inlinevirtual

Destructs this instance and frees all resouces.

Member Function Documentation

◆ ActivateConfiguration()

virtual InterbusResult Arp::Io::Interbus::Services::IInterbusMasterService::ActivateConfiguration ( uint16  frameReference)
pure virtual

Activate configuration

Parameters
frameReferenceFrame reference
Returns
Structure with error information. Arp.Io.Interbus.Services.InterbusResult

◆ AlarmStop()

virtual InterbusResult Arp::Io::Interbus::Services::IInterbusMasterService::AlarmStop ( )
pure virtual

Trigger a long reset

Returns
Structure with error information. Arp.Io.Interbus.Services.InterbusResult

◆ CreateConfiguration()

virtual InterbusResult Arp::Io::Interbus::Services::IInterbusMasterService::CreateConfiguration ( uint16  frameReference)
pure virtual

Automatic creation of a new configuration

Parameters
frameReferenceFrame reference
Returns
Structure with error information. Arp.Io.Interbus.Services.InterbusResult

◆ DeactivateConfiguration()

virtual InterbusResult Arp::Io::Interbus::Services::IInterbusMasterService::DeactivateConfiguration ( uint16  frameReference)
pure virtual

Deactivate configuration

Parameters
frameReferenceFrame reference
Returns
Structure with error information. Arp.Io.Interbus.Services.InterbusResult

◆ InterbusControl()

virtual uint16 Arp::Io::Interbus::Services::IInterbusMasterService::InterbusControl ( const std::vector< uint16 > &  inData,
std::vector< uint16 > &  outData
)
pure virtual

Raw Interbus service to communicate with the AXIO master.

Parameters
inDataRequest Data to send to the Interbus master. Format has to be according to DDI specification.
outDataResponse Data received from the Interbus master. Format is according to DDI specification.
Returns
Status value (0 = No error). Note: This service only returns internal errors. Negative confirmations have to be evaluated by user.

◆ ReadConfiguration()

virtual InterbusResult Arp::Io::Interbus::Services::IInterbusMasterService::ReadConfiguration ( std::vector< DeviceConfiguration > &  configuration)
pure virtual

Read current configuration

Parameters
configurationConfiguration of Interbus devices Arp.Io.Interbus.Services.DeviceConfiguration
Returns
Structure with error information. Arp.Io.Interbus.Services.InterbusResult

◆ StartDataTransfer()

virtual InterbusResult Arp::Io::Interbus::Services::IInterbusMasterService::StartDataTransfer ( )
pure virtual

Start cyclic data transfer

Returns
Structure with error information. Arp.Io.Interbus.Services.InterbusResult

◆ StopDataTransfer()

virtual InterbusResult Arp::Io::Interbus::Services::IInterbusMasterService::StopDataTransfer ( )
pure virtual

Stop cyclic data transfer

Returns
Structure with error information. Arp.Io.Interbus.Services.InterbusResult

◆ WriteConfiguration()

virtual InterbusResult Arp::Io::Interbus::Services::IInterbusMasterService::WriteConfiguration ( uint16  frameReference,
const std::vector< DeviceConfiguration > &  configuration
)
pure virtual

Write configuration

Parameters
frameReferenceFrame reference
configurationConfiguration of Interbus devices Arp.Io.Interbus.Services.DeviceConfiguration
Returns
Structure with error information. Arp.Io.Interbus.Services.InterbusResult

The documentation for this class was generated from the following file:
