Arp::Device::Interface::Services::IDeviceInfoService Class Reference

Use this service to read device information. More...

#include <IDeviceInfoService.hpp>

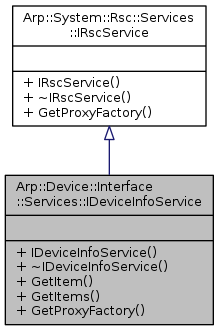

Inheritance diagram for Arp::Device::Interface::Services::IDeviceInfoService:

Public Types
typedef std::shared_ptr< IDeviceInfoService >	Ptr
typedef delegate< void(IRscWriteEnumerator< RscString< 512 >> &)>	GetItemsIdentifiersDelegate
typedef delegate< void(IRscReadEnumerator< RscVariant< 512 >> &)>	GetItemsResultDelegate
Public Types inherited from Arp::System::Rsc::Services::IRscService
typedef std::shared_ptr< IRscService >	Ptr

Public Member Functions
	IDeviceInfoService (void)
	Constructs an IDeviceInfoService instance. More...
virtual	~IDeviceInfoService (void)
	Destructs this instance and frees all resouces. More...
virtual RscVariant< 512 >	GetItem (const RscString< 512 > &identifier)=0
	Read a single information More...
virtual void	GetItems (GetItemsIdentifiersDelegate identifiersDelegate, GetItemsResultDelegate resultDelegate)=0
	Read a list of information More...
Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
	IRscService (void)=default
	Constructs an IRscService instance. More...
virtual	~IRscService (void)=default
	Destructs this instance and frees all resouces. More...

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)
Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of the service More...

Detailed Description

Use this service to read device information.

Constructor & Destructor Documentation

IDeviceInfoService()

Arp::Device::Interface::Services::IDeviceInfoService::IDeviceInfoService ( void  )

inline

Constructs an IDeviceInfoService instance.

~IDeviceInfoService()

Arp::Device::Interface::Services::IDeviceInfoService::~IDeviceInfoService ( void  )

inlinevirtual

Destructs this instance and frees all resouces.

Member Function Documentation

GetItem()

virtual RscVariant<512> Arp::Device::Interface::Services::IDeviceInfoService::GetItem ( const RscString< 512 > &  identifier )

pure virtual

Read a single information

Parameters

identifier

String for select the item

Returns

value as

RscVariant

on success,

RscType::Void

on error

GetItems()

virtual void Arp::Device::Interface::Services::IDeviceInfoService::GetItems ( GetItemsIdentifiersDelegate  identifiersDelegate, GetItemsResultDelegate  resultDelegate  )

pure virtual

Read a list of information

Parameters

identifiers

Arry of String for select the items

Returns

value as

RscVariant

>on success,

RscType::Void

on error

---

The documentation for this class was generated from the following file:

• Arp/Device/Interface/Services/IDeviceInfoService.hpp
