Arp::Device::Interface::Services::IDeviceControlService Class Reference

Use this service to control the device. More...

#include <IDeviceControlService.hpp>

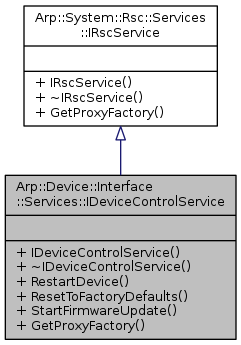

Inheritance diagram for Arp::Device::Interface::Services::IDeviceControlService:

Public Types
typedef std::shared_ptr< IDeviceControlService >	Ptr
Public Types inherited from Arp::System::Rsc::Services::IRscService
typedef std::shared_ptr< IRscService >	Ptr

Public Member Functions
	IDeviceControlService (void)
	Constructs an IDeviceControlService instance. More...
virtual	~IDeviceControlService (void)
	Destructs this instance and frees all resouces. More...
virtual void	RestartDevice ()=0
	Reboot the device More...
virtual AccessErrorCode	ResetToFactoryDefaults (uint16 resetType)=0
	Reset device configuration More...
virtual AccessErrorCode	StartFirmwareUpdate (uint16 updateType)=0
	Start FW update More...
Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
	IRscService (void)=default
	Constructs an IRscService instance. More...
virtual	~IRscService (void)=default
	Destructs this instance and frees all resouces. More...

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)
Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of the service More...

Detailed Description

Use this service to control the device.

Constructor & Destructor Documentation

IDeviceControlService()

IDeviceControlService::IDeviceControlService ( void  )

inline

Constructs an IDeviceControlService instance.

~IDeviceControlService()

IDeviceControlService::~IDeviceControlService ( void  )

inlinevirtual

Destructs this instance and frees all resouces.

Member Function Documentation

ResetToFactoryDefaults()

virtual AccessErrorCode Arp::Device::Interface::Services::IDeviceControlService::ResetToFactoryDefaults ( uint16  resetType )

pure virtual

Reset device configuration

Parameters

resetType

1 Reset device configuration to factory default, 2 Downgrade FW to factory version and reset configuration

Returns

Result of start execute Arp.Device.Interface.Services.AccessErrorCode

After successfull start the PLC will stop and than reboot. While the reboot the requested defaults will be set.

RestartDevice()

virtual void Arp::Device::Interface::Services::IDeviceControlService::RestartDevice ( )

pure virtual

Reboot the device

StartFirmwareUpdate()

virtual AccessErrorCode Arp::Device::Interface::Services::IDeviceControlService::StartFirmwareUpdate ( uint16  updateType )

pure virtual

Start FW update

Parameters

updateType

Reserved for extentions, must be 0 in this version.

Returns

Result of start execute Arp.Device.Interface.Services.AccessErrorCode

Before you can start an update a raucb-container must be copied to path "/opt/plcnext". After successfull start an update the PLC will stop, execute the update and than reboot.

---

The documentation for this class was generated from the following file:

• Arp/Device/Interface/Services/IDeviceControlService.hpp
