Contains error information of Interbus service. More...

#include <InterbusResult.hpp>

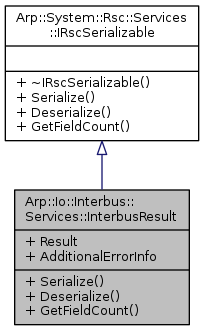

Inheritance diagram for Arp::Io::Interbus::Services::InterbusResult:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor More...

Static Public Member Functions
static size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
uint16	Result = 0
	Result describes the error cause. (0 = No error) To get the meaning of Result, please look in the Interbus manual for firmware services. You will find there a section with error codes. More...

uint16	AdditionalErrorInfo = 0
	AdditionalErrorInfo gives additional information about the error cause described by Result. To get the meaning of AdditionalErrorInfo, please look in the Interbus manual for firmware services. You will find there a section with error codes. More...

Detailed Description

Contains error information of Interbus service.

Member Function Documentation

◆ Deserialize()

void Arp::Io::Interbus::Services::InterbusResult::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

Implements Arp::System::Rsc::Services::IRscSerializable.

◆ Serialize()

void Arp::Io::Interbus::Services::InterbusResult::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

Implements Arp::System::Rsc::Services::IRscSerializable.

Member Data Documentation

◆ AdditionalErrorInfo

uint16 Arp::Io::Interbus::Services::InterbusResult::AdditionalErrorInfo = 0

AdditionalErrorInfo gives additional information about the error cause described by Result. To get the meaning of AdditionalErrorInfo, please look in the Interbus manual for firmware services. You will find there a section with error codes.

◆ Result

uint16 Arp::Io::Interbus::Services::InterbusResult::Result = 0

Result describes the error cause. (0 = No error) To get the meaning of Result, please look in the Interbus manual for firmware services. You will find there a section with error codes.

The documentation for this struct was generated from the following file:

Arp/Io/Interbus/Services/InterbusResult.hpp
