Arp::Plc::Commons::Meta::MetaComponentBase Class Reference

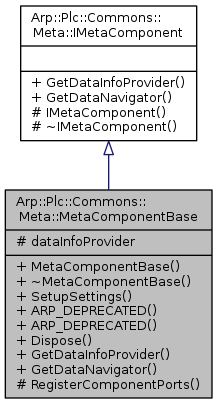

Inheritance diagram for Arp::Plc::Commons::Meta::MetaComponentBase:

Public Member Functions
	MetaComponentBase (const char *libraryNamespace)
void	SetupSettings (void)
	Sets up the internal DataInfoProvider to enable providing meta data More...
	ARP_DEPRECATED ("Call MetaComponentBase::SetupSettings() in the component's SetupSettings() method instead.") void SetupConfig(void)
	ARP_DEPRECATED ("Call MetaComponentBase::Dispose() in the component's Dispose() method instead.") void ResetConfig(void)
	summary>Resets the internal DataInfoProvider More...
void	Dispose (void)
IDataInfoProvider &	GetDataInfoProvider (bool isChanging) override
IDataNavigator *	GetDataNavigator (void) override
	Gets the specialized IDataNavigator of this component. More...

Protected Member Functions
virtual void	RegisterComponentPorts (void)=0
	Registers the ports of this component with its DataInfoProvider More...
Protected Member Functions inherited from Arp::Plc::Commons::Meta::IMetaComponent
	IMetaComponent (void)=default
	Constructs an IMetaComponent instance. More...
virtual	~IMetaComponent (void)=default
	Destructs this instance and frees all resources. More...

Protected Attributes
DataInfoProvider	dataInfoProvider

Additional Inherited Members
Public Types inherited from Arp::Plc::Commons::Meta::IMetaComponent
typedef std::shared_ptr< IMetaComponent >	Ptr

Member Function Documentation

ARP_DEPRECATED()

Arp::Plc::Commons::Meta::MetaComponentBase::ARP_DEPRECATED

(

"Call MetaComponentBase::Dispose() in the component's Dispose() method instead."

)

summary>Resets the internal DataInfoProvider

GetDataNavigator()

IDataNavigator* Arp::Plc::Commons::Meta::MetaComponentBase::GetDataNavigator ( void  )

overridevirtual

Gets the specialized IDataNavigator of this component.

Returns

The data navigator of this component or nullptr if it's not provided.

Implements Arp::Plc::Commons::Meta::IMetaComponent.

RegisterComponentPorts()

virtual void Arp::Plc::Commons::Meta::MetaComponentBase::RegisterComponentPorts ( void  )

protectedpure virtual

Registers the ports of this component with its DataInfoProvider

Implement this method to make the ports of this component available as variables using DataInfoProvider::AddRoot().

SetupSettings()

void Arp::Plc::Commons::Meta::MetaComponentBase::SetupSettings

(

void

)

Sets up the internal DataInfoProvider to enable providing meta data

---

The documentation for this class was generated from the following file:

• Arp/Plc/Commons/Meta/MetaComponentBase.hpp
