This Services controls the NetloadLimiter More...

#include <INetloadLimiterService.hpp>

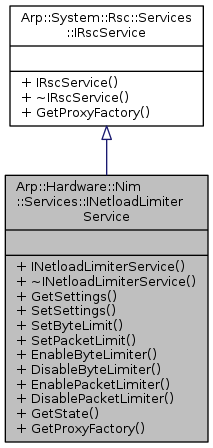

Inheritance diagram for Arp::Hardware::Nim::Services::INetloadLimiterService:

Public Types
typedef std::shared_ptr< INetloadLimiterService >	Ptr

Public Types inherited from Arp::System::Rsc::Services::IRscService
typedef std::shared_ptr< IRscService >	Ptr

Public Member Functions
	INetloadLimiterService (void)
	Constructs an INetloadLimiterService instance. More...

virtual	~INetloadLimiterService (void)
	Destructs this instance and frees all resouces. More...

virtual NetloadLimiterErrorCode	GetSettings (uint8 networkInterface, NetloadLimiterSettings &settings)=0
	Gets the current settings for the selected network interface. More...

virtual NetloadLimiterErrorCode	SetSettings (uint8 networkInterface, const NetloadLimiterSettings &settings)=0
	Sets settings for selected network interface. More...

virtual NetloadLimiterErrorCode	SetByteLimit (uint8 networkInterface, uint32 limit)=0
	Sets new byte limit for the selected network interface. More...

virtual NetloadLimiterErrorCode	SetPacketLimit (uint8 networkInterface, uint16 limit)=0
	Sets new packet limit for the selected network interface. More...

virtual NetloadLimiterErrorCode	EnableByteLimiter (uint8 networkInterface)=0
	Enables the byte limiter for the selected network interface. More...

virtual NetloadLimiterErrorCode	DisableByteLimiter (uint8 networkInterface)=0
	Disables the byte limiter for the selected network interface. More...

virtual NetloadLimiterErrorCode	EnablePacketLimiter (uint8 networkInterface)=0
	Enables the packet limiter for the selected network interface. More...

virtual NetloadLimiterErrorCode	DisablePacketLimiter (uint8 networkInterface)=0
	Disables the packet limiter for the selected network interface. More...

virtual NetloadLimiterErrorCode	GetState (uint8 networkInterface, NetloadLimiterState &state)=0
	Gets the current state of the selected network interface. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
	IRscService (void)=default
	Constructs an IRscService instance. More...

virtual	~IRscService (void)=default
	Destructs this instance and frees all resouces. More...

Static Public Member Functions
static IRscServiceProxyFactory &	GetProxyFactory (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscService
static IRscServiceProxyFactory &	GetProxyFactory (void)
	Returns a reference to service proxy factory to create a proxy instance of the service More...

Detailed Description

This Services controls the NetloadLimiter

Constructor & Destructor Documentation

◆ INetloadLimiterService()

Arp::Hardware::Nim::Services::INetloadLimiterService::INetloadLimiterService ( void )

inline

Constructs an INetloadLimiterService instance.

◆ ~INetloadLimiterService()

Arp::Hardware::Nim::Services::INetloadLimiterService::~INetloadLimiterService ( void )

inlinevirtual

Destructs this instance and frees all resouces.

Member Function Documentation

◆ DisableByteLimiter()

virtual NetloadLimiterErrorCode Arp::Hardware::Nim::Services::INetloadLimiterService::DisableByteLimiter ( uint8 networkInterface )

pure virtual

Disables the byte limiter for the selected network interface.

Parameters

networkInterface Id of the network interface

Returns: Error code of operation

◆ DisablePacketLimiter()

virtual NetloadLimiterErrorCode Arp::Hardware::Nim::Services::INetloadLimiterService::DisablePacketLimiter ( uint8 networkInterface )

pure virtual

Disables the packet limiter for the selected network interface.

Parameters

networkInterface Id of the network interface

Returns: Error code of operation

◆ EnableByteLimiter()

virtual NetloadLimiterErrorCode Arp::Hardware::Nim::Services::INetloadLimiterService::EnableByteLimiter ( uint8 networkInterface )

pure virtual

Enables the byte limiter for the selected network interface.

Parameters

networkInterface Id of the network interface

Returns: Error code of operation

◆ EnablePacketLimiter()

virtual NetloadLimiterErrorCode Arp::Hardware::Nim::Services::INetloadLimiterService::EnablePacketLimiter ( uint8 networkInterface )

pure virtual

Enables the packet limiter for the selected network interface.

Parameters

networkInterface Id of the network interface

Returns: Error code of operation

◆ GetSettings()

virtual NetloadLimiterErrorCode Arp::Hardware::Nim::Services::INetloadLimiterService::GetSettings	(	uint8	networkInterface,
		NetloadLimiterSettings &	settings
	)

pure virtual

Gets the current settings for the selected network interface.

Parameters

networkInterface	Id of the network interface
settings	Current settings of selected network interface

Returns: Error code of operation

◆ GetState()

virtual NetloadLimiterErrorCode Arp::Hardware::Nim::Services::INetloadLimiterService::GetState	(	uint8	networkInterface,
		NetloadLimiterState &	state
	)

pure virtual

Gets the current state of the selected network interface.

Parameters

networkInterface	Id of the network interface
state	Current state of selected network interface

Returns: Error code of operation

◆ SetByteLimit()

virtual NetloadLimiterErrorCode Arp::Hardware::Nim::Services::INetloadLimiterService::SetByteLimit	(	uint8	networkInterface,
		uint32	limit
	)

pure virtual

Sets new byte limit for the selected network interface.

Parameters

networkInterface	Id of the network interface
limit	New byte limit for the selected network interface

Returns: Error code of operation

◆ SetPacketLimit()

virtual NetloadLimiterErrorCode Arp::Hardware::Nim::Services::INetloadLimiterService::SetPacketLimit	(	uint8	networkInterface,
		uint16	limit
	)

pure virtual

Sets new packet limit for the selected network interface.

Parameters

networkInterface	Id of the network interface
limit	New packet limit for the selected network interface

Returns: Error code of operation

◆ SetSettings()

virtual NetloadLimiterErrorCode Arp::Hardware::Nim::Services::INetloadLimiterService::SetSettings	(	uint8	networkInterface,
		const NetloadLimiterSettings &	settings
	)

pure virtual

Sets settings for selected network interface.

Parameters

networkInterface	Id of the network interface
settings	New settings for the selected network interface

Returns: Error code of operation

The documentation for this class was generated from the following file:

Arp/Hardware/Nim/Services/INetloadLimiterService.hpp
