Result on PcpStatus service More...

#include <StatusResult.hpp>

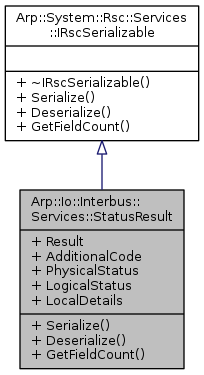

Inheritance diagram for Arp::Io::Interbus::Services::StatusResult:

Public Member Functions
void	Serialize (RscWriter &writer) const override
	Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter. More...

void	Deserialize (RscReader &reader) override
	Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader. More...

Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
virtual	~IRscSerializable ()=default
	default destructor More...

Static Public Member Functions
static size_t	GetFieldCount (void)

Static Public Member Functions inherited from Arp::System::Rsc::Services::IRscSerializable
static size_t	GetFieldCount (void)
	Returns the count of fields of the struct type More...

Public Attributes
uint16	Result = 0
	Result describes the error cause. (0 = No error) To get the meaning of Result, please look in the PCP manual. You will find there a section with error codes. More...

uint16	AdditionalCode = 0
	AdditionalCode gives additional information about the error cause described by Result. To get the meaning of AdditionalCode, please look in the PCP manual. You will find there a section with error codes. More...

uint8	PhysicalStatus = 0
	Physical status of device More...

uint8	LogicalStatus = 0
	Logical status of device More...

RscString< 512 >	LocalDetails
	Detailed information on device status More...

Detailed Description

Result on PcpStatus service

Member Function Documentation

◆ Deserialize()

void Arp::Io::Interbus::Services::StatusResult::Deserialize ( RscReader & reader )

inlineoverridevirtual

Deserializes the datatype. All fields of the datatype have to be deserialized in use of RscReader.

Parameters

reader Reference to RscReader.

Implements Arp::System::Rsc::Services::IRscSerializable.

◆ Serialize()

void Arp::Io::Interbus::Services::StatusResult::Serialize ( RscWriter & writer ) const

inlineoverridevirtual

Serializes the datatype. All fields of the datatype have to be serialized in use of RscWriter.

Parameters

writer Reference to RscWriter

Implements Arp::System::Rsc::Services::IRscSerializable.

Member Data Documentation

◆ AdditionalCode

uint16 Arp::Io::Interbus::Services::StatusResult::AdditionalCode = 0

AdditionalCode gives additional information about the error cause described by Result. To get the meaning of AdditionalCode, please look in the PCP manual. You will find there a section with error codes.

◆ LocalDetails

RscString<512> Arp::Io::Interbus::Services::StatusResult::LocalDetails

Detailed information on device status

◆ LogicalStatus

uint8 Arp::Io::Interbus::Services::StatusResult::LogicalStatus = 0

Logical status of device

◆ PhysicalStatus

uint8 Arp::Io::Interbus::Services::StatusResult::PhysicalStatus = 0

Physical status of device

◆ Result

uint16 Arp::Io::Interbus::Services::StatusResult::Result = 0

Result describes the error cause. (0 = No error) To get the meaning of Result, please look in the PCP manual. You will find there a section with error codes.

The documentation for this struct was generated from the following file:

Arp/Io/Interbus/Services/StatusResult.hpp
